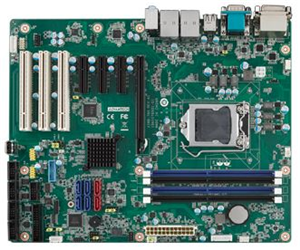

Advantech AIMB-785G2 ATX LGA1151 Q170 Motherboard

Introduction

The Advantech AIMB-785G2 is a high-performance industrial ATX motherboard designed to support Intel's 6th and 7th generation Core processors. Built with the Intel Q170 chipset, this motherboard is ideal for applications requiring robust performance, expandability, and long-term availability. Whether you're setting up a digital signage system, a point-of-sale terminal, or an industrial control system, the AIMB-785G2 offers the reliability and features needed for demanding environments.

Key Features

1. Processor Support

• Socket Type: LGA1151

• Compatible Processors: Intel 6th and 7th generation Core i7, i5, i3, Pentium, and Celeron processors

• Chipset: Intel Q170


2. Memory

• Memory Slots: 4 x 288-pin DIMM

• Maximum Capacity: Up to 64 GB

• Memory Type: DDR4 SDRAM

• Supported Speeds: 1866/2133 MHz


3. Graphics and Display

• Integrated Graphics: Intel HD Graphics

• Display Outputs: 1 x VGA, 2 x DVI-D

• Maximum Resolution: Up to 1920 x 1200 @ 60Hz

• Triple Display Support: Yes


4. Networking

• Ethernet Ports: 2 x Gigabit Ethernet (RJ45)

• Controllers: Intel I219LM (LAN1), Intel I211AT (LAN2)


5. Storage and Expansion

• SATA Ports: 6 x SATA III (4 from Intel Q170, 2 from Marvell 9186A2)

• RAID Support: Software RAID 0, 1, 5, 10

• Expansion Slots:

  • 1 x PCIe x16 (Gen3)

  • 3 x PCIe x4 (Gen3)

  • 3 x PCI


6. USB Ports

• USB 3.0 Ports: 4 x USB 3.0

• USB 2.0 Ports: 2 x USB 2.0

• Internal USB Headers: 2 x USB 3.0, 4 x USB 2.0


7. Audio and Serial Ports

• Audio: HD Audio (Line-out, Mic-in)

• Serial Ports: 5 x RS-232, 1 x RS-232/422/485

• PS/2 Ports: 1 x PS/2 keyboard/mouse


8. Additional Features

• Trusted Platform Module (TPM): Optional TPM 2.0 module for enhanced security

• Intel vPro Technology: Supported with compatible processors

• Intel Active Management Technology (AMT): Supported with compatible processors

• Watchdog Timer: Programmable interval for system monitoring


Benefits

• High Expandability: With multiple PCIe and PCI slots, the AIMB-785G2 supports a wide range of expansion cards, making it suitable for various industrial applications.

• Triple Display Capability: The ability to drive up to three displays simultaneously is beneficial for digital signage and multi-monitor setups.

• Robust Networking: Dual Gigabit Ethernet ports ensure reliable and fast network connectivity.

• Long-Term Availability: Designed for industrial use, the AIMB-785G2 offers long-term availability and stability.

• Advanced Security Features: Support for TPM and Intel AMT provides enhanced security and remote management capabilities.


Why Choose the Advantech AIMB-785G2?

The Advantech AIMB-785G2 stands out due to its combination of performance, expandability, and reliability. Its support for Intel's 6th and 7th generation processors ensures that it can handle demanding applications, while its extensive I/O options and expansion slots provide flexibility for various use cases. Additionally, its long-term availability makes it a stable choice for industrial deployments.

Conclusion

In conclusion, the Advantech AIMB-785G2 ATX LGA1151 Q170 Motherboard is a versatile and reliable choice for industrial and embedded applications. Its robust feature set, including support for high-performance processors, ample memory capacity, and extensive connectivity options, makes it suitable for a wide range of use cases. Whether you're building a custom industrial PC or upgrading an existing system, the AIMB-785G2 offers the performance and reliability needed to meet your requirements.

Specifications
