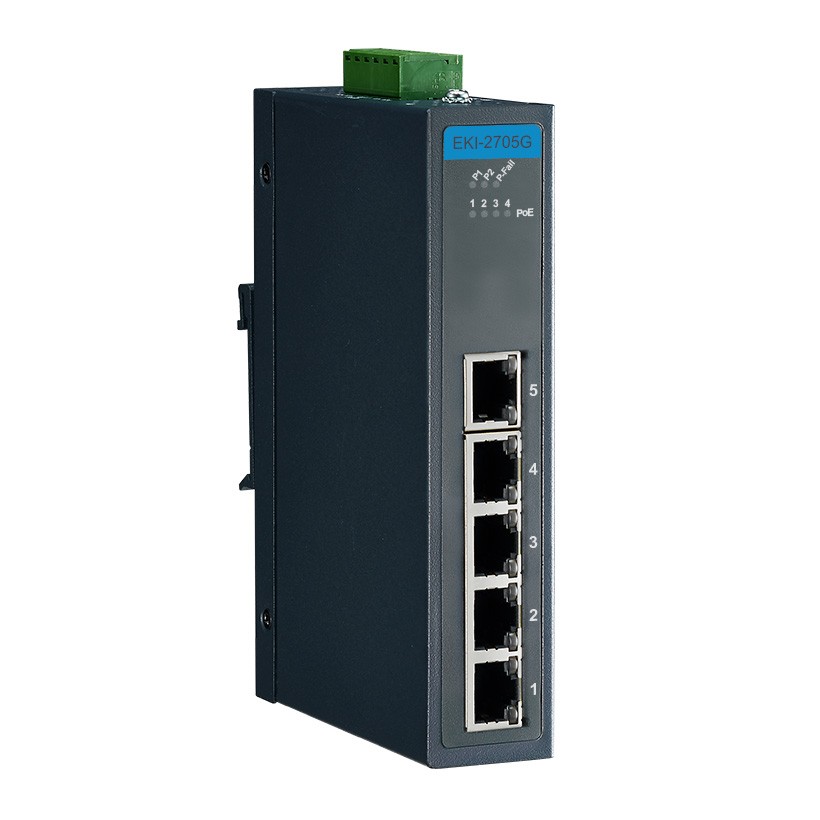

Advantech EKI-2705G-1GPI-A 4 Port PoE 24-48VDC Switch

4GE PoE + 1GE Unmanaged Industrial Switch w/Wide temp. 24-48VDC Input

Specifications

Advantech EKI-2705G-1GPI-A 4-Port PoE Industrial Ethernet Switch

1. Product Description

The Advantech EKI-2705G-1GPI-A is an unmanaged industrial Ethernet switch designed to meet the connectivity needs of modern industrial networks. It features five 10/100/1000 Mbps RJ45 ports, including four IEEE 802.3af/at Power over Ethernet (PoE/PoE+) ports, and one Gigabit Ethernet port. This switch is ideal for applications such as IP surveillance cameras, wireless access points, and other PoE-enabled devices in industrial environments.

Built to withstand harsh conditions, the EKI-2705G-1GPI-A operates within a wide temperature range of -40°C to 75°C, ensuring reliable performance in various settings. Its compact design allows for easy integration into existing network infrastructures, while its robust metal enclosure provides durability and protection.

2. Key Points

• PoE Support: The switch provides up to 30W per port on four PoE ports, simplifying power delivery to connected devices.

• High-Speed Connectivity: With Gigabit Ethernet support, the switch ensures fast and reliable data transmission.

• Wide Operating Temperature Range: Operating between -40°C and 75°C, the switch is suitable for diverse industrial environments.

• Redundant Power Inputs: Dual 24~48VDC power inputs with reverse polarity protection and overload current fuse enhance system reliability.

• Compact Design: The switch's small form factor facilitates easy installation in space-constrained areas.


3. Benefits

• Simplified Installation: PoE capability reduces the need for separate power supplies, streamlining device deployment.

• Enhanced Network Performance: Gigabit Ethernet support ensures high-speed data transfer, accommodating bandwidth-intensive applications.

• Durability: The wide operating temperature range and robust enclosure make the switch resilient in challenging environments.

• Reliability: Redundant power inputs and protective features minimize the risk of downtime.

• Space Efficiency: The compact design allows for flexible installation options, including DIN rail and wall mounting.


4. Why Choose the Advantech EKI-2705G-1GPI-A?

The Advantech EKI-2705G-1GPI-A stands out as a reliable and efficient networking solution for industrial applications. Its combination of PoE support, high-speed connectivity, and rugged design makes it an excellent choice for businesses seeking to enhance their network infrastructure. Whether for factory automation, surveillance systems, or other industrial applications, this switch delivers performance and reliability.
