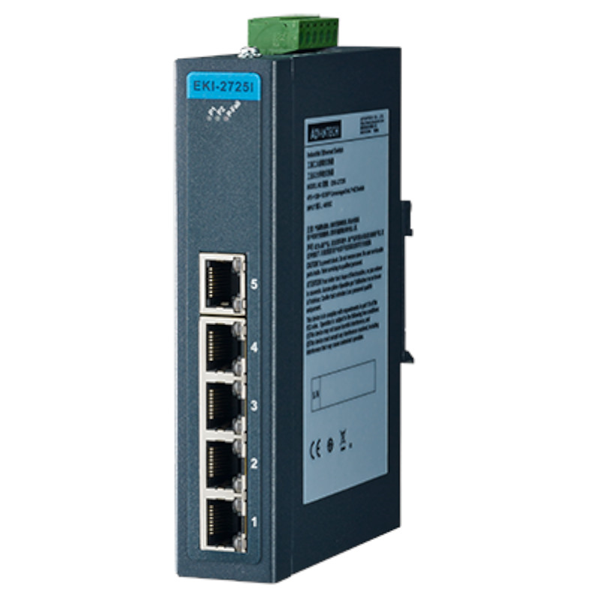

Advantech EKI-2725I-CE 5-Port Unmanaged GbE Ethernet Switch Wide Temp

The EKI-2725 supports Gigabit Ethernet. The power is a +12V ~ 48VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The EKI-2725 tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725 will automatically get back to normal operation state. Wide Temperature Grade

Specifications

Advantech EKI-2725I-CE 5-Port Unmanaged GbE Ethernet Switch (Wide Temperature)

The Advantech EKI-2725I-CE is a robust 5-port unmanaged Gigabit Ethernet switch, engineered for industrial environments that demand high reliability and performance. With a wide operating temperature range of -40°C to 75°C, this switch is ideal for applications in factory automation, transportation, and outdoor installations where temperature extremes are common.

Key Features

• 5 Gigabit Ethernet Ports: Equipped with five 10/100/1000 Mbps RJ45 ports, the EKI-2725I-CE supports high-speed data transfer, ensuring efficient network communication.
• Auto MDI/MDI-X Support: Automatically detects and adjusts for straight-through or crossover cables, simplifying network setup and reducing the need for specific cable types.

• Jumbo Frame Support: Capable of handling jumbo frames up to 9 KB, which is beneficial for applications requiring large data packets, such as video surveillance or data-intensive industrial processes.

• Redundant Power Inputs: Features dual 12~48 VDC power inputs with reverse polarity and overload current protection, ensuring continuous operation even in the event of a power failure.
• DIN-Rail and Wall Mountable: Designed for flexible installation, the switch can be mounted on a DIN rail or directly on a wall, accommodating various industrial setups.

• IP30-Rated Metal Enclosure: Provides durability and protection against dust and debris, making it suitable for harsh industrial environments.

• Low Power Consumption: Operates with a maximum power consumption of 2.5W, contributing to energy efficiency in network operations.


Benefits

• Enhanced Network Reliability: The wide operating temperature range ensures stable performance in diverse environmental conditions, reducing the risk of downtime.

• Simplified Installation: Auto MDI/MDI-X support and flexible mounting options streamline the setup process, saving time and effort during installation.

• Cost-Effective Solution: As an unmanaged switch, the EKI-2725I-CE offers a plug-and-play solution without the need for complex configuration, making it a cost-effective choice for industrial networking.

• Durability in Harsh Environments: The IP30-rated enclosure and wide temperature tolerance make this switch resilient against environmental challenges, ensuring long-term reliability.


Why Choose the EKI-2725I-CE

Selecting the Advantech EKI-2725I-CE means opting for a networking solution that combines durability, flexibility, and performance. Its wide operating temperature range and rugged design make it particularly suitable for industries such as manufacturing, transportation, and outdoor applications where equipment is exposed to challenging conditions.
