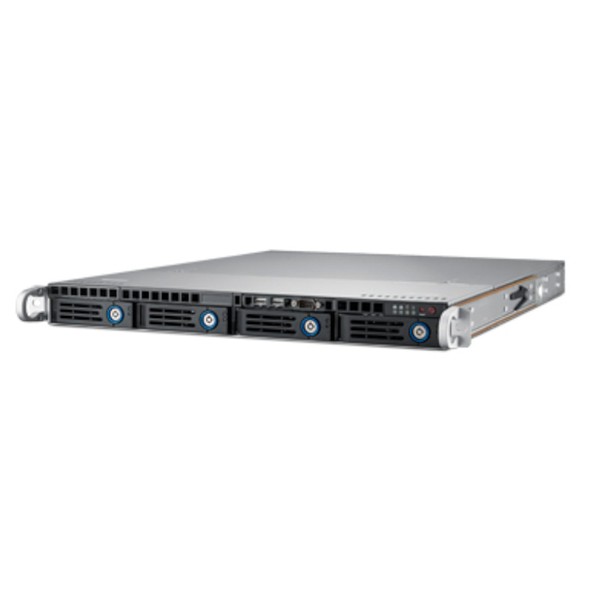

Advantech HPC-7140-00A1E 1U Server Chassis 4x 3.5" Hot-swap Bays

1U Rackmount Server Chassis for MicroATX/ATX Server board with 4 x 3.5" Hot-swap Drive Bays https://advdownload.advantech.com/productfile/PIS/HPC-7140/file/HPC-7140_DS(051921)20210521094252.pdf

Specifications

Advantech HPC-7140-00A1E 1U Server Chassis with 4x 3.5" Hot-Swap Bays

Description

The Advantech HPC-7140-00A1E is a high-performance 1U rackmount server chassis designed to support MicroATX and ATX motherboards. Engineered for industrial and enterprise applications, this chassis offers a compact yet robust solution for building scalable and reliable server systems.

Equipped with four hot-swappable 3.5" drive bays, the HPC-7140-00A1E facilitates easy maintenance and upgrades, ensuring minimal downtime. Its efficient cooling system, featuring four 40mm fans, maintains optimal airflow to prevent overheating during intensive operations.

Please note that this model does not include a power supply unit (PSU), allowing for customization based on specific power requirements.

Key Features

• Motherboard Compatibility: Supports MicroATX and ATX motherboards, providing flexibility for various system configurations.

• Drive Bays:

  • Four hot-swappable 3.5" SAS/SATA/SSD drive bays for easy storage management.

  • One external 5.25" bay for optional optical drives.

• Cooling System: Equipped with four 40mm fans (23 CFM each) and washable air filters to ensure efficient heat dissipation.

• Front I/O Ports:

  • Two USB 2.0 ports.

  • One COM port for serial communication.

• Expansion Slots: One full-height, half-length PCIe x16 slot for additional expansion cards.

• Environmental Durability:

  • Operating Temperature: 0 ~ 35°C.

  • Non-Operating Temperature: -40 ~ 70°C.

  • Operating Humidity: 10 ~ 85% @ 40°C, non-condensing.

  • Non-Operating Humidity: 10 ~ 95% @ 40°C, non-condensing.

  • Vibration (5–500 Hz): 0.25 Grms.

  • Shock: 0.5 G.

• Dimensions: 437 mm (W) x 43.6 mm (H) x 504.2 mm (D).

• Weight: Approximately 6.5 kg.


Benefits

• Customizable Power Options: The absence of a pre-installed PSU allows for selection of a power supply that meets specific system requirements.

• Enhanced Durability: Built to endure harsh environments, making it suitable for industrial and field applications.

• Easy Maintenance: Hot-swappable drive bays and front-accessible components simplify installation and servicing, reducing downtime.

• Space Efficiency: The 1U form factor ensures compatibility with standard 19" racks, optimizing space utilization.

• Cost-Effective: Offers a balance between performance and affordability, providing value for budget-conscious projects.


Why Choose the Advantech HPC-7140-00A1E?

Opting for the Advantech HPC-7140-00A1E chassis ensures a reliable and customizable foundation for your industrial computing needs. Its robust design, combined with the flexibility to choose your own power supply, makes it an ideal choice for applications requiring durability and performance. Whether you're building a new system or upgrading an existing one, this chassis provides the versatility and reliability essential for mission-critical operations.

Conclusion

In conclusion, the Advantech HPC-7140-00A1E 1U Server Chassis with 4x 3.5" Hot-Swap Bays offers a durable and customizable solution for industrial and mission-critical computing applications. Its robust construction, ample drive bays, and compatibility with standard PS/2 power supplies make it a versatile choice for various configurations. By selecting this chassis, you're investing in a reliable foundation that can withstand demanding environments and deliver consistent performance.
