Advantech WISE-4051: 8-Channel Digital Input IoT Wireless I/O Module with RS-485

Introduction

The Advantech WISE-4051 is an advanced wireless I/O module designed for Industrial Internet of Things (IIoT) applications. It features 8 digital input channels and an RS-485 port, providing versatile connectivity options for industrial automation systems. With built-in 2.4GHz Wi-Fi support, the WISE-4051 enables seamless integration into existing networks, reducing wiring costs and simplifying deployment.

Key Features

• 8 Digital Input Channels: Supports both dry contact (0: open, 1: close) and wet contact (0: 0~3 VDC, 1: 10~30 VDC) logic levels.

• RS-485 Port: Facilitates communication with Modbus RTU devices, allowing integration with a wide range of industrial equipment.

• 2.4GHz Wi-Fi Connectivity: Complies with IEEE 802.11 b/g/n standards, enabling wireless communication over distances up to 110 meters line-of-sight.

• Data Logging: Stores up to 10,000 data points with RTC timestamping, ensuring data integrity even during network interruptions.

• Cloud Integration: Supports file-based cloud storage (e.g., Dropbox) and private cloud servers via RESTful APIs in JSON format.

• Protocols Supported: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT, and RESTful Web API.

• Mobile Configuration: Allows direct configuration via mobile devices without the need for additional software or apps.

• Industrial-Grade Protection: Features 4,200 VDC isolation protection for inputs and outputs, ensuring reliable operation in harsh environments.


Benefits

• Cost-Effective Deployment: Wireless connectivity reduces the need for extensive cabling, lowering installation costs.

• Scalability: Easily integrates into existing networks and can be expanded by adding access points, facilitating scalable IIoT solutions.

• Remote Monitoring and Control: Enables real-time monitoring and control of devices from anywhere, enhancing operational efficiency.

• Data Integrity: Built-in data logging ensures that critical data is not lost, even during network outages.

• Flexible Integration: Supports multiple communication protocols, allowing seamless integration with various industrial systems.


Why Choose the WISE-4051?

• Trusted Brand: Advantech is a leading provider of industrial automation solutions, known for high-quality and reliable products.

• Versatile Connectivity: The combination of digital inputs and RS-485 port provides flexibility in connecting to a wide range of devices.

• User-Friendly Configuration: The mobile configuration feature simplifies setup and reduces deployment time.

• Robust Performance: Designed to operate in challenging industrial environments, ensuring reliable performance over time.


Conclusion

The Advantech WISE-4051 is an ideal solution for industrial applications requiring reliable and flexible wireless I/O capabilities. Its combination of digital inputs, RS-485 communication, and Wi-Fi connectivity makes it suitable for a wide range of IIoT applications, from remote monitoring to data acquisition and control. With its robust features and ease of integration, the WISE-4051 empowers businesses to implement efficient and scalable IIoT solutions.

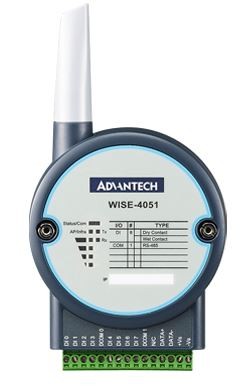

Advantech WISE-4051 8Ch Dig Input IoT Wireless I/O Module with RS-485

8-ch digital input with 1-port RS-485 for Modbus devices 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition Easily extend the existing network by adding APs, and share existing Ethernet software Configured by mobile devices directly without installing any software or Apps Zero data loss using the log function with RTC time stamp Data can be automatically pushed to Dropbox or computer Supports RESTful web API in JSON format for IoT integration

Specifications
