Countersink Drill Bit NZ

Product information:
Shank type: straight shank
Cooling type (internal cooling/external cooling) external cooling
Cutting diameter (mm) Conventional
Shank diameter (mm) Conventional
Length of chip flute (mm) Conventional
Useful length (mm) Conventional
Total length (mm) Conventional
External cutting edge angle (°) Conventional
Material high speed steel
Maximum depth of cut
Blade size conventional
Category Straight shank twist drill
Series Twist drill
Model number
4+1 three-point woodworking drill 8-05, 7+1 three-point woodworking drill 8-04, 8+1 three-point woodworking drill +6mm, 8+1 three-point woodworking drill plus 3m
Product weight (kg) 0.225

Size Information:

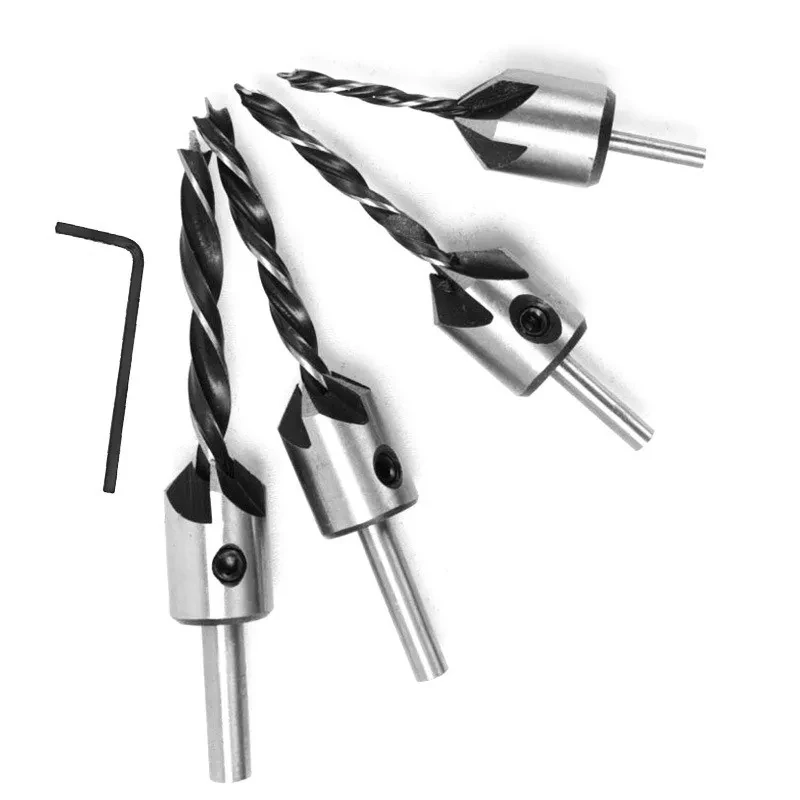

Size: 4pc countersunk drill
Specifications: 3mm, 4mm, 5mm, 6mm (the diameter of the three-point wood drill)
Package weight: 105*75*16mm (opp bag) 124g

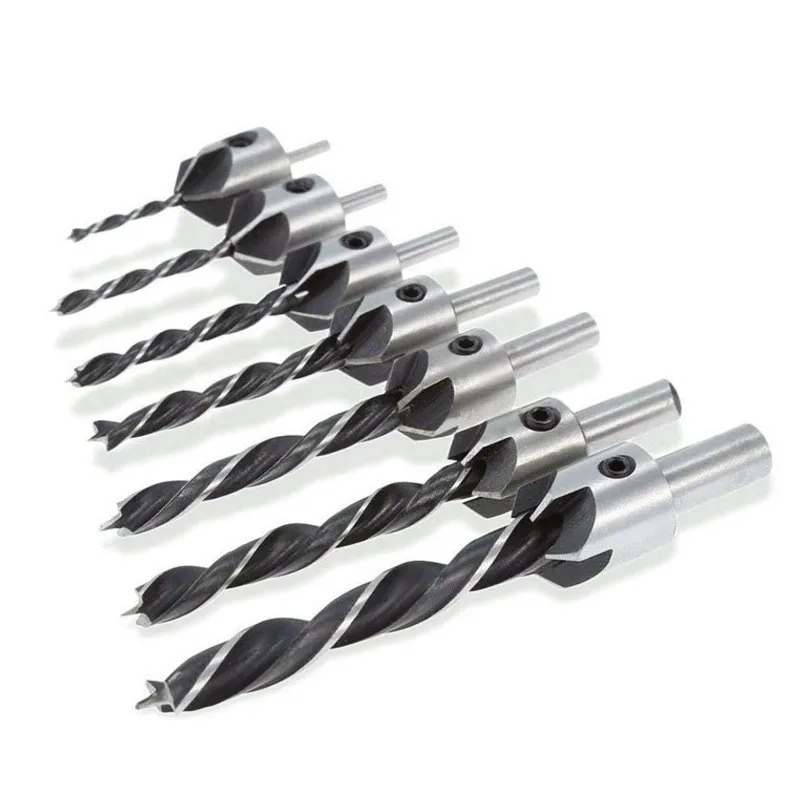

7pc countersunk drill
Specification: 3/4/5/6/7/8/10mm
Package weight: 125*130*16mm 256g

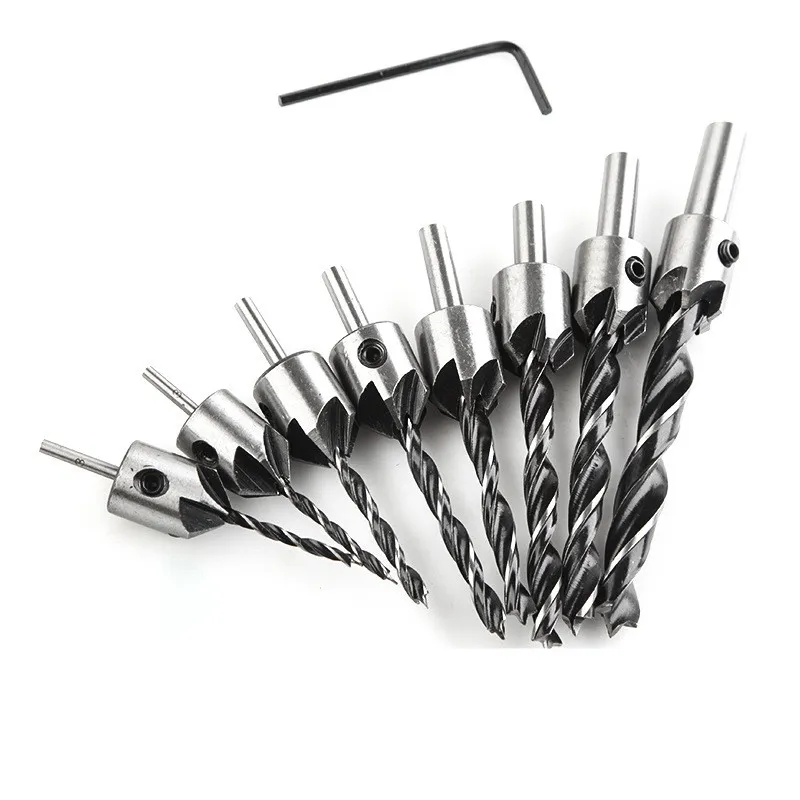

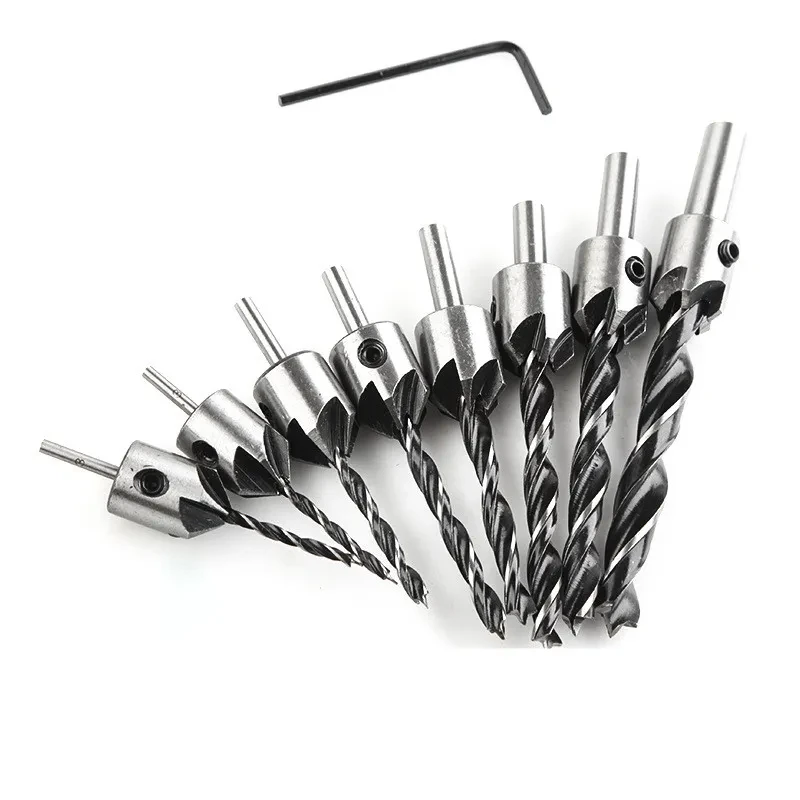

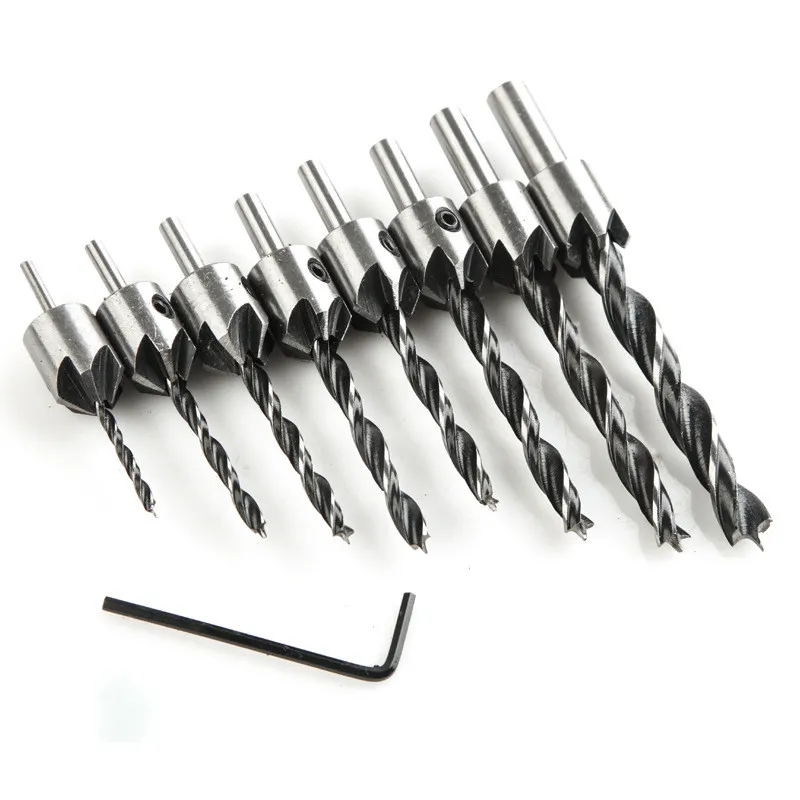

8pc countersunk drill
Specification: 3/4/5/6/7/8/9/10mm
Package weight: 140*120*16mm 295g

Packing list:
Woodworking drill x1 set

Countersink Drill Bit NZ – Precision Holes & Clean Finishes

Perfect for Woodworkers, Tradespeople, DIY Enthusiasts, and Workshop Users in New Zealand

A countersink drill bit NZ is an essential tool for anyone who builds, repairs, or crafts with wood, metal, or plastic in New Zealand. Designed to create a conical recess that allows screws to sit flush or below the surface, countersink bits produce professional‑grade results with smooth finishes and stronger fastenings. Whether you’re fitting cabinetry, installing hardware, framing timber, or assembling furniture, these bits help you achieve accurate, clean countersinks and pilot holes in one efficient step.

Description – Countersink Drill Bit NZ

A countersink drill bit is a specialised cutting tool used with drills and drill drivers that combines a pilot drill point with a conical cutting edge. The pilot bit drills the main hole, while the surrounding conical flutes cut a tapered recess (the countersink) that matches the head angle—commonly 82°, 90°, or 100°—of flat‑head or oval‑head screws. This enables screw heads to sit flush with, or below, the surface of the material, preventing protrusion and enhancing the appearance and structural quality of the finished project.

Countersink bits can be single‑piece units or adjustable pilot/countersink combinations. They are manufactured from materials such as high‑speed steel (HSS), coated HSS (e.g., black oxide or titanium), or carbide tips for longer life and wear resistance. The flutes are ground precisely to cut smooth, clean edges without tear‑out, which is especially important in fine woodworking and cabinetry applications.

In New Zealand’s diverse DIY and professional environments—where timber, plywood, MDF, and various metals are common—countersink drill bits provide versatility and accuracy. They are used across carpentry, joinery, renovation, and mechanical assembly tasks. Partners with powered drills, drill presses, or cordless drivers, these bits accelerate workflow while improving finished quality.

Key Points

Integrated Drill & Countersink Geometry:
Countersink bits combine a pilot drill with a tapered cutting surface that creates both a hole and a conical recess, allowing screws to sit flush or beneath the surface.

Material & Coating Options:
Available in high‑speed steel (HSS), coated HSS (e.g., black oxide, titanium), and carbide variants—each offering differing balance of cost, durability, and cutting performance.

Multiple Angles for Screw Head Compatibility:
Common bit angles (82°, 90°, 100°) match standard screw head shapes to ensure precise seating and stronger fixings without surface distortion.

Versatile Use Across Materials:
Countersink drill bits work effectively on wood, plywood, MDF, plastics, and light metals, making them versatile for DIY and professional workshop tasks.

Benefits

1. Professional‑Looking Finishes:
Flush or recessed screws look cleaner and perform better. Countersinking reduces snag points and surface irregularities that can compromise aesthetics and safety.

2. Reduced Splitting & Tear‑Out:
By cutting a precise recess before screw insertion, countersink bits minimise splitting in wood and reduce surface tear‑out around fastener holes, preserving material integrity.

3. Faster, Accurate Drilling:
Integrated bits eliminate the need for separate pilot drilling and countersinking tools, speeding up workflow and improving precision—especially valuable in repetitive tasks.

4. Stronger Fastening Points:
Recessed screw heads distribute load more evenly and sit flush with surfaces, which reduces stress concentrations and improves structural strength in joinery and assembly.

5. Suitable for Diverse Projects:
From cabinetry and decking to furniture repair and metalworking, cropping flush screws enhances both form and function across varied Kiwi workshop tasks.

Why Choose These Countersink Drill Bits NZ?

Choosing countersink drill bits NZ tailored for local use ensures you get tools that balance performance, durability, and versatility for common materials found in New Zealand projects. These bits are engineered for smooth cutting, clean recesses, and durable performance—qualities that separate everyday workshop bits from inferior alternatives.

Premium countersink bits use high‑quality steel and precision fluting to resist dulling, provide consistent cutting action, and reduce burring. Coated variants (titanium, black oxide) deliver enhanced wear resistance and longer life, especially when drilling moderate metal sections or dense hardwoods. Carbide‑tip models extend performance further under heavy use, particularly in abrasive materials.

These NZ‑ready bits match common screw head profiles, so whether you use cabinet screws, countersunk timber screws, or machine screws, you achieve exact seating without enlargement or misalignment. Their design also reduces undue strain on both drill and material, improving safety and reducing rework.

Whether you’re a tradesperson, workshop hobbyist, or weekend DIYer, investing in quality countersink drill bits returns value through time savings, professional finishes, and fewer material defects. Their compatibility with standard drills and drill presses adds convenience, making them indispensable for woodworking, joinery, renovation, and metal filing tasks around homes, workshops, and commercial sites.

Match Countersink Angle to Screw Head

• 82° Countersink: Common for many timber screws—ideal for most woodworking tasks.
• 90° Countersink: Standard for many general‑purpose screws and hardware fixings.
• 100° Countersink: Used for specific fasteners and decorative applications.

Selecting the correct countersink angle improves mechanical engagement and reduces the risk of screw heads deforming or standing proud.

Everyday Use Scenarios

Cabinetry & Joinery

Achieve flush screw heads when constructing cabinets, shelves, and timber frames. This improves the visual and functional quality of joinery work.

Decking & Outdoor Structures

Countersunk screws in decking boards reduce trip hazards and surface splinters, improving safety and long‑term durability.

Furniture Assembly

When assembling tables, chairs, cabinets, or storage units, countersinking ensures a professional finish and reduces snag points on daily use surfaces.

Door & Hardware Fittings

Installing hinges, handles, or interior fixings with recessed screws ensures neat aesthetics and prevents protrusion against moving parts.

Light Metalwork

Countersink bits suitable for aluminium or sheet metal help place flush machine screws, enhancing mechanical assembly quality.

Choosing the Right Countersink Drill Bit NZ

Material Construction:
• HSS (High‑Speed Steel): Good general‑purpose performance for wood and mild steel.
• Coated HSS (Titanium / Black Oxide): Improved wear resistance and reduced friction for longer life.
• Carbide‑Tipped: Exceptional durability for heavy use or abrasive materials.

Shank Type:
Standard round shanks fit most drill chucks; hex shanks suit quick‑change drivers and impact drivers for fast tool swaps.

Adjustable Countersink Sets:
Some kits allow depth adjustment or multiple angles in one tool—ideal for varying screw types without multiple bits.

Pilot Drill Size:
Built‑in pilot bits eliminate separate drilling steps, but ensure pilot diameter matches your screw size for a snug, accurate hole.

Kit Sets vs Single Bits:
Sets provide versatility across media and tasks; single bits are ideal when you need a specific angle or size.

Safety & Best Practices

Steady, Controlled Drilling:
Maintain firm, stable positioning and moderate speed to avoid chatter, tear‑out, or bit wandering—especially near edges.

Match Pilot to Screw:
Use the correct pilot diameter to avoid oversized holes that reduce holding strength, or undersized holes that cause splitting.

Apply Light Pressure on Countersinks:
Let the cutting edges do work; excessive force can deform the screw recess or burnish surrounding material.

Secure Workpiece:
Clamp wood or metal to prevent movement during drilling.

Wear Eye Protection:
Always use safety glasses when countersinking and drilling to protect against chips or swarf.

Care & Maintenance

Keep Bits Sharp:
Dull countersink cutters cause rough cuts and can tear material. Periodically resharpen or replace when edge quality degrades.

Clean Flutes After Use:
Remove swarf or debris from flutes after cutting softwood, hardwood, or metal for consistent performance.

Store Properly:
Protect bits from knocks and moisture to maintain sharpness and prevent corrosion.

Avoid Overheating:
When drilling metal, use cutting fluid or light lubrication to reduce heat build‑up that dulls cutting edges.

Conclusion

A countersink drill bit NZ is a foundational tool for anyone seeking professional‑grade results in woodworking, metalwork, and assembly tasks. By combining pilot hole drilling with precision countersinking, these bits give you flush screw seats, stronger fastenings, cleaner aesthetics, and a smoother overall project finish.

Whether you’re constructing cabinets, fixing decking, hanging hardware, or building furniture, the right countersink bit makes the job more accurate, efficient, and visually appealing. Quality construction, appropriate angle selection, and compatibility with standard drills ensure these bits become staples in both professional and home workshop toolkits across New Zealand.

With proper selection, safe handling, and good maintenance practices, countersink drill bits enhance your drilling performance, reduce costly mistakes, and improve final results—day after day, project after project.
