HDZero FPV 5-inch Racing Crossing Machine Nano 90 HD Camera

Product information:
Type: Crossing machine HD camera
Color: HDZero Nano90 (including 80mm MIPI lines)

HDZero FPV 5" Racing Quad — “Crossing Machine” with Nano 90 HD Camera

Built for pure speed and crystal-clear digital video, this 5-inch FPV racing/freestyle quad pairs the HDZero digital system with a Nano 90 HD camera to deliver low-latency, high-definition feeds through gates, bandos, and tree gaps. Lightweight, durable, and tune-ready, it’s your go-to rig for race days and backyard ripping.

Key Highlights

• HDZero Digital Link (Ultra-Low Latency)
  Sub-frame latency for confident proximity flying and tight lines; clean 720p/1080p-class HD (model/antenna dependent).

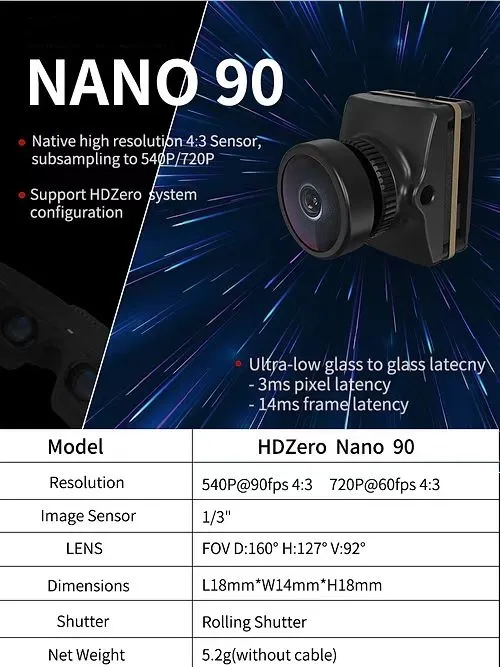

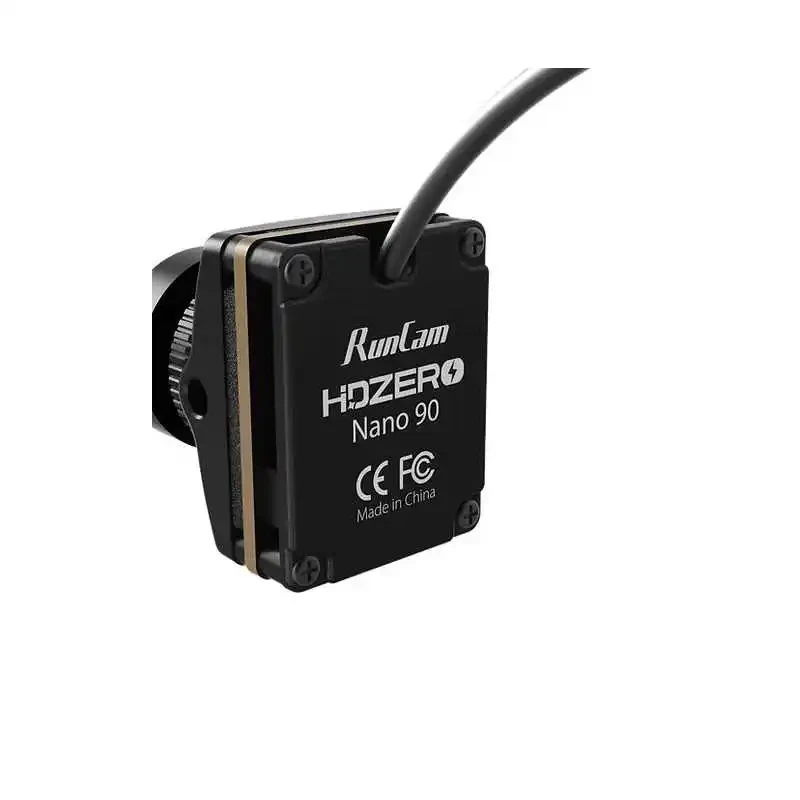

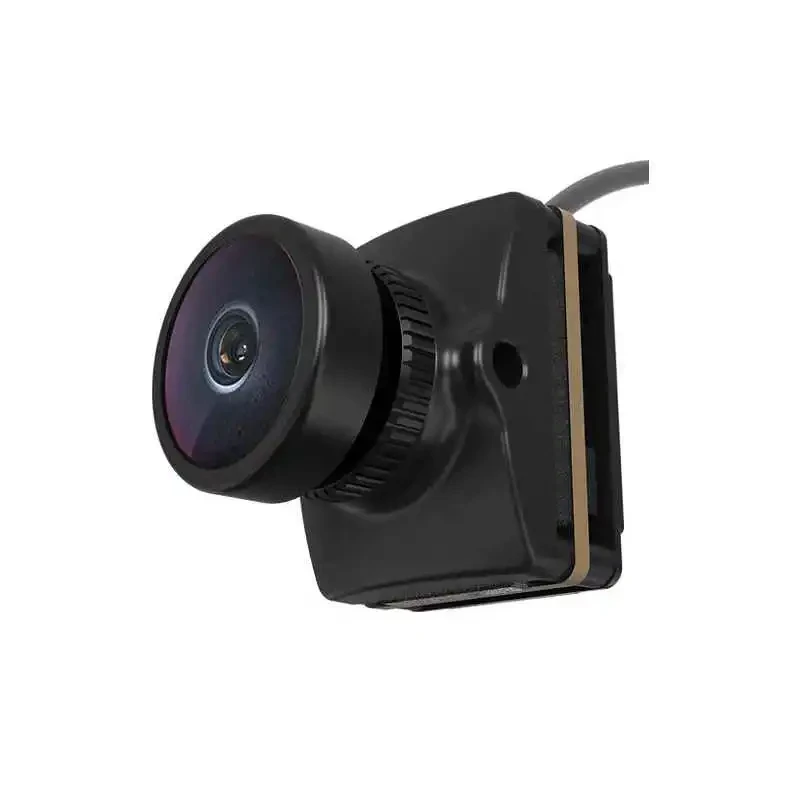

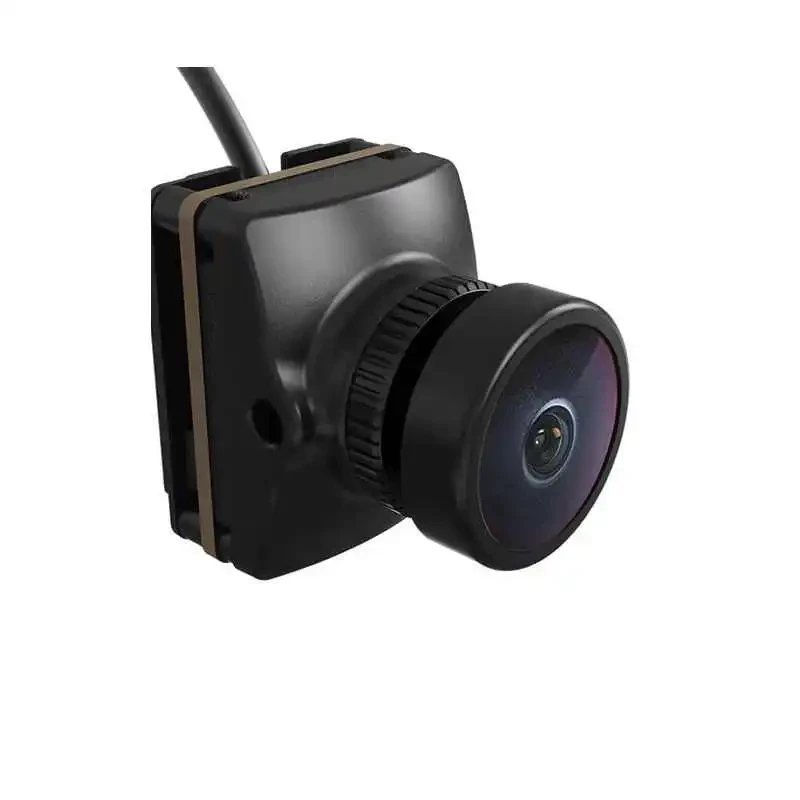

• Nano 90 HD Camera
  Compact, wide-FOV sensor with crisp detail, natural color, and excellent light handling for both indoor tracks and golden-hour sessions.

• 5-Inch Prop Powertrain
  Standard 5" wheelbase supports 2205–2207/2305–2306 motors on 4S/6S (build-dependent) for punchy throttle and efficient race pace.

• Rigid Carbon Frame
  3K carbon plates with braced arms for stiffness, crash resilience, and easy arm swaps; TPU prints for antenna/camera protection.

• Clean Stack Layout
  20×20 or 30.5×30.5 stack holes; room for FC/ESC, VTX, and a rear-mounted RX; tidy wiring for better airflow and serviceability.

• Filter & Power Conditioning
  Capacitor and LC filtering keep digital video stable under hard throttle; smart VTX mounting for cooling.


Suggested Specs (typical 5" HDZero build; may vary by kit)

• FC/ESC: F4/F7 20×20 or 30×30; 35–55 A BLHeli_32 4-in-1

• Motors/Props: 2207 1750–1900 KV (6S) or 2500–2700 KV (4S); 5×3.1–5×4.3 tri-blades

• VTX/Camera: HDZero VTX (Whoop/20×20/Freestyle) + Nano 90 HD; RHCP/LHCP 5.8 GHz antenna

• Receiver: ELRS / Crossfire / other SBUS/CRSF

• Weight (dry): ~250–330 g; AUW with 6S 1100–1300 mAh ~540–650 g

• Flight Time: ~3–7 min freestyle; longer for gentle cruising


Flight Features

• Locked-in Tune: PID filter presets for race or freestyle; anti-oscillation at high throttle.

• Turtle Mode & Beeper: Flip-over recovery and lost model tone.

• OSD Integration: HDZero OSD for voltage, mAh, RSSI/LQ, timers, lap times.


Why Pilots Love It

• See more, send it harder: HDZero’s clarity + Nano 90 dynamic range = confident gap shots.

• Race-ready reliability: Stiff arms and clean power keep video and control rock-solid.

• Serviceable design: Standard stacks, replaceable arms, and TPU mounts simplify repairs between heats.


Setup Tips

• Soft-mount the stack and secure the VTX with airflow in mind.

• Calibrate and set link quality/failsafe before first pack.

• Match antenna polarization and keep coax away from props.

• Start on conservative rates; raise P/D and feed-forward gradually for your style.


In the Box (kit/BNF varies)

• 5" carbon frame with hardware & TPU prints

• HDZero Nano 90 HD camera + VTX (variant-dependent)

• Antenna, screws, standoffs; optional BNF with FC/ESC/motors/receiver

• Quick setup sheet


Bottom line: A fast, tough 5-inch “crossing machine” that gives you digital HD with analog-like latency, so you can rip lines, chase gates, and capture crisp DVR without sacrificing feel.
