Product information:

Product Type: Geared Motor
Model :775
Number of poles: 2 poles
Rated power: other
Rated voltage: 12V 24V (V)

[Rated voltage] 12V [No-load current] 1.05A [Use voltage] 24V [No-load current] 1.55A [Weight] About 360g

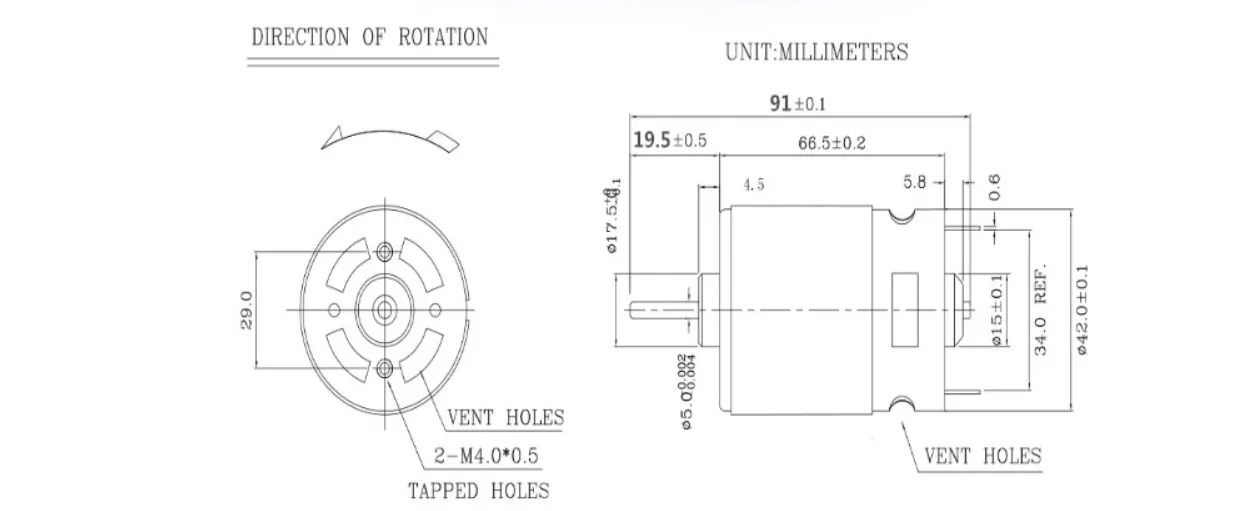

[Motor size] with protective magnetic ring diameter 45mm without protective magnetic ring diameter 42mm total height without shaft 74mm
[Shaft length dimension] Diameter 5mm, height from the housing to the shaft head 19.5mm
[Internal structure] High insulation grade of strong magnet rotor and additional cooling fan

Packing list：

Geared Motor*1

High-Speed Motor – Powerful and Efficient Performance for Precision Tasks

Perfect for Robotics, Electronics, and Automotive Applications

The High-Speed Motor is the ideal choice for anyone requiring fast and efficient motor performance in applications that demand high RPM (revolutions per minute). Whether you're building a robot, working on precision electronics, or enhancing automotive systems, this motor delivers the speed and power you need for fast, smooth, and reliable operation. Its high-speed capabilities ensure that your equipment performs at its best, making it an essential component for projects requiring rapid movement and quick response times.

Description – High-Speed Motor

The High-Speed Motor is engineered to operate at high RPMs, providing rapid movement and fast operation for various applications. Built with precision in mind, this motor offers excellent performance in tasks such as robotics, electronics, and automotive systems. Designed for efficiency and durability, the motor’s advanced technology ensures low friction, reduced energy consumption, and maximum speed without sacrificing reliability. Whether you're assembling a high-speed fan, building a drone, or working with automotive systems, this motor provides the optimal performance for your needs.

Key Points

• High RPM Performance: This motor is capable of achieving high revolutions per minute, making it ideal for applications that require rapid, smooth movement.

• Precision Engineering: Designed for accurate and efficient performance, the high-speed motor operates with minimal friction and energy loss, ensuring optimal performance in demanding tasks.

• Durable and Reliable: Constructed with high-quality materials, the motor is built to last, providing long-term reliability even in high-speed, high-stress environments.

• Compact Design: Despite its powerful capabilities, the motor’s compact size makes it suitable for use in a variety of systems, from small electronic devices to larger machines.


Benefits

• Fast and Efficient Operation: The high-speed capabilities allow for quick task completion, whether it's in robotics, automotive applications, or precision electronics.

• Improved Productivity: With high-speed motors, projects that require rapid movement are completed in less time, improving overall productivity and efficiency.

• Versatility: Suitable for a wide range of applications, including robotics, drones, automotive systems, fans, and small electronic devices, this motor is versatile and adaptable to many projects.

• Energy Efficient: The high-speed motor is designed to provide optimal performance with minimal power consumption, reducing energy costs and extending the life of the motor.


Why Choose This High-Speed Motor?

The High-Speed Motor offers unmatched performance, delivering rapid and precise motion for a wide range of applications. Whether you're working on a high-performance robot, enhancing an automotive system, or building a high-speed fan, this motor ensures that your equipment runs at peak efficiency. Its precision engineering, low-friction operation, and compact design make it an ideal choice for tasks that demand speed, reliability, and energy efficiency.

Conclusion

The High-Speed Motor is essential for anyone requiring rapid and precise motor performance. Its ability to deliver high RPM, low-friction operation, and energy-efficient performance makes it a versatile solution for robotics, electronics, and automotive applications. Whether you’re looking to power small devices or larger systems, this motor provides the speed and reliability necessary for optimal performance.
