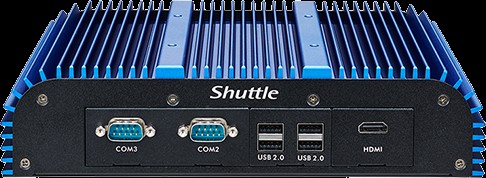

Shuttle BPCAL03-i5-1245UE Fanless -20~60 Industrial Embedded PC

Shuttle BPCAL03-i5-1245UE Fanless -20~60 Industrial Embedded PC

intel ® Processor Core i5-1245UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI (Max 4 display outputs), Aluminum chassis, fanless, -20~60°C, 150W, Supports Intel® vPro™ and AMT

Specifications

Shuttle BPCAL03-i5-1245UE Fanless -20~60°C Industrial Embedded PC

The Shuttle BPCAL03-i5-1245UE Fanless -20~60°C Industrial Embedded PC is a compact and rugged computing solution designed for industrial and embedded applications. Powered by the Intel® Core™ i5-1245UE processor, this mini PC offers reliable performance in harsh environments, making it ideal for applications such as industrial automation, edge computing, and digital signage.

Key Features

• Processor: Equipped with the Intel® Core™ i5-1245UE processor, featuring 10 cores (2 performance cores and 8 efficient cores) and a base clock speed of 1.1 GHz, with a turbo boost up to 4.4 GHz. This configuration provides robust performance for multitasking and demanding applications.

• Graphics: Integrated Intel® Iris® Xe Graphics, capable of supporting up to four independent 4K displays at 60Hz, making it ideal for digital signage, video conferencing, and multitasking setups.

• Memory: Supports up to 64 GB of DDR5-4800 SO-DIMM memory, allowing for smooth multitasking and efficient performance in memory-intensive applications.

• Storage: Offers flexible storage options with one M.2-2280 PCIe Gen 4 x4 NVMe SSD slot, one M.2-2280 PCIe Gen 3 x4/SATA SSD slot, and one 2.5" SATA drive bay (up to 15mm height), supporting RAID 0/1 configurations for enhanced performance and data redundancy.

• Connectivity: Includes dual 2.5G Ethernet ports (Intel i226LM), eight USB ports (four USB 3.2 Gen 2 Type-A and four USB 2.0), one HDMI 2.0b port, one DisplayPort 1.4a, and audio in/out jacks, providing versatile connectivity options for various peripherals and displays.

• Design: Housed in a compact aluminum chassis measuring 190 x 165 x 43 mm and weighing 1.23 kg, the BPCAL03 is designed for space-constrained environments.

• Cooling: Features a fanless design with a heat-pipe cooling system, ensuring silent operation and reliability in harsh environments.

• Operating Temperature: Designed to operate in a wide temperature range of -20°C to +60°C, making it suitable for industrial applications in various climates.

• Power Supply: Powered by a 19V/4.74A 90W external adapter, supporting wide-range input voltages for global compatibility.


Benefits

• Compact Form Factor: The small size allows for deployment in space-constrained environments, such as behind monitors or in digital signage applications.

• High Performance: The powerful Intel Core i5 processor and integrated Iris Xe graphics ensure smooth operation of demanding applications, including multitasking, digital signage, and video conferencing.

• Flexible Storage Options: Support for multiple storage devices and RAID configurations provides flexibility and data redundancy for critical applications.

• Versatile Connectivity: Multiple USB ports, display outputs, and network connectivity options allow for seamless integration with various peripherals and networks.

• Silent Operation: The fanless design ensures quiet performance, making it suitable for noise-sensitive environments.


Why Choose the Shuttle BPCAL03-i5-1245UE?

The Shuttle BPCAL03-i5-1245UE Fanless -20~60°C Industrial Embedded PC is an excellent choice for professionals seeking a compact, high-performance computing solution. Its powerful processor, flexible storage options, and versatile connectivity make it ideal for applications such as industrial automation, edge computing, and digital signage, where space is limited but performance is essential.

Conclusion

In conclusion, the Shuttle BPCAL03-i5-1245UE Fanless -20~60°C Industrial Embedded PC offers a compelling combination of performance, compact design, and versatility. Whether you're looking to enhance your industrial automation setup, deploy a silent edge computing solution, or create a powerful digital signage system, the BPCAL03 provides the performance and flexibility needed to meet your requirements.
