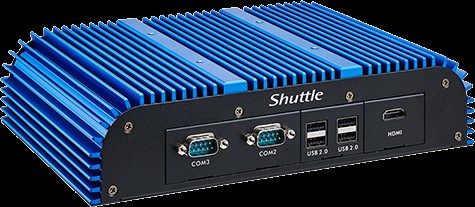

Shuttle BPCAL03-i7-1255U Fanless -20~60 Industrial PC
Approx $1,286.15 USD
Shuttle BPCAL03-i7-1255U Fanless -20~60 Industrial PC
ntel ® Processor Core i7-1255U, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI (Max 4 display outputs), Aluminum chassis, fanless, -20~60°C, 150W, Supports Intel® vPro™ and AMT
Specifications
| Processor | ntel ® Processor Core i7-1255U |
| Memory | 2 x 262 pin SO-DIMM up to 64GB Dual Channel DDR5 4800 MHz |
| BIOS | AMI UEFI 64 Mbit |
| Display Interface | 2 x HDMI 2.0b: 4096 x 2160@60Hz |
| Audio Codec | Realtek ALC888s-VD 2-channel |
| Ethernet | 2 x Intel® 2.5G LAN |
| WLAN | Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option) Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option) External antenna (Dipole) x2 (Option) |
| LAN | 2 x RJ-45 (10/100/1000Mbps/2.5GbE) Supports Wake On LAN |
| Serial Ports | 1 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board) |
| USB | 4 x USB3.2 Gen 2 (Type A) 4 x USB2.0 |
| Audio | 1 x Line-out 1 x Mic-in |
| Power Type | 1. 19V (without wide range board) 2. With wide range board, MB support 9-36V DC-in |
| Power Adapter | 19V/7.89A 150W external adapter |
| OS Support | Windows 10 / 11 IoT 64bit Linux 64bit |
| Mounting | VESA Mount 75 x 75 mm Ear Mount 256 x 100 mm Din Rail Mount 35 mm |
| Dimensions (W x H x D) | 245 x 57 x 169mm |
| Weight | 2.85 kg |
| Operating Temperature | -20 ~ 60°C |
| Relative Humidity | 10% - 90% RH (non-condensing) |
| EMC | CE, FCC, VCCI, BSMI, RCM |
| Safety | cTUVus, CB, CEC, BSMI |
Shuttle BPCAL03-i7-1255U Fanless Industrial PC
The Shuttle BPCAL03-i7-1255U Fanless Industrial PC is a high-performance, ruggedized computing solution designed for demanding industrial environments. Powered by the Intel Core i7-1255U processor, this fanless mini PC offers silent operation, wide operating temperature range, and robust connectivity options, making it ideal for applications such as factory automation, digital signage, transportation, and remote monitoring.
Key Features
- Intel Core i7-1255U Processor: Delivers powerful performance for demanding applications.
- Fanless Design: Ensures silent operation and reduces maintenance needs.
- Wide Operating Temperature Range: Operates reliably in environments from -20°C to 60°C.
- Dual 2.5GbE LAN Ports: Provides high-speed networking capabilities.
- Modular I/O Expansion: Offers flexible connectivity options to meet specific requirements.
- Dual-Channel DDR5 Memory Support: Supports up to 64GB of DDR5-4800MHz memory.
- Multiple Display Outputs: Capable of driving up to four independent displays.
Benefits
-
Silent Operation: The fanless design eliminates noise, making it suitable for noise-sensitive environments.
- Durability: Built to withstand harsh industrial conditions, ensuring long-term reliability.
- Energy Efficiency: Low power consumption reduces operational costs.
- Flexibility: Modular design allows for customization to meet specific application needs.
- High Performance: The Intel Core i7 processor ensures smooth operation of demanding applications.
Why Choose the Shuttle BPCAL03-i7-1255U?
The Shuttle BPCAL03-i7-1255U Fanless Industrial PC is an excellent choice for industries that require a compact, silent, and energy-efficient computing solution. Its wide operating temperature range, robust design, and powerful performance make it suitable for a variety of industrial applications, including factory automation, digital signage, and remote monitoring.
Conclusion
In conclusion, the Shuttle BPCAL03-i7-1255U Fanless Industrial PC offers a reliable and powerful computing solution for demanding industrial environments. Its silent operation, wide operating temperature range, and robust connectivity options make it an ideal choice for applications that require durability and high performance.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
