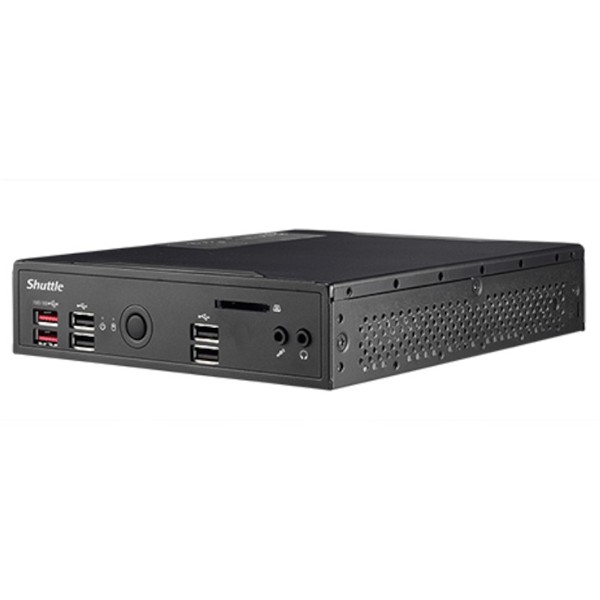

Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC

Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC

Intel i3-10110U, UHD Graphics, Fanless Passive Cooling, 2x SODIMM DDR4, 1x 2.5" SATA, 1x M.2 2280 SATA & PCIE, fanless, HDMI 2.0, DisplayPort, VGA, COM, 2 x LAN

Specifications

Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC

The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is a compact, fanless computing solution designed for professional applications requiring silent operation, energy efficiency, and robust connectivity. Housed in a durable 1.3-liter metal chassis, this mini PC is ideal for environments such as digital signage, kiosks, thin clients, and office PCs.

Key Features

• Processor: Equipped with the Intel® Core™ i3-10110U processor (2 cores, 4 threads, base clock 2.1 GHz, turbo boost up to 4.1 GHz), providing efficient performance for everyday tasks.

• Graphics: Integrated Intel® UHD Graphics, supporting up to three independent displays via HDMI 2.0a, DisplayPort 1.2, and VGA outputs, capable of handling 4K video playback.

• Memory: Supports up to 64GB of DDR4-2400/2666MHz memory across two SO-DIMM slots, allowing for smooth multitasking and memory-intensive applications.

• Storage: Offers flexible storage options with one 2.5" SATA bay and one M.2-2280 slot for SSDs, accommodating both high-speed and high-capacity storage needs.

• Connectivity:

  • Ethernet: Dual Gigabit Ethernet ports (Intel i211 and i219-LM) for reliable wired network connections.

  • USB Ports: Four USB 3.2 Gen 2 ports and four USB 2.0 ports for connecting various peripherals.

  • Audio: High-definition audio output for multimedia applications.

  • Serial Port: One RS232/RS422/RS485 serial port for industrial and embedded applications.

• Expansion: Includes an M.2-2230E slot for optional WLAN cards, enabling wireless connectivity for flexible networking.

• Cooling: Features a fanless passive cooling system, ensuring silent operation and reliability in noise-sensitive environments.

• Mounting: Supports VESA mounting, allowing for versatile installation options behind monitors or on walls, saving valuable desk space.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Applications

The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is suitable for a wide range of professional applications:

• Digital Signage: Delivering high-quality video playback for advertising and information displays.

• Kiosks: Providing interactive interfaces for self-service stations in public spaces.

• Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.

• Office PCs: Offering a compact and efficient solution for everyday computing tasks.

• Multimedia Applications: Supporting multimedia playback and presentations.


Why Choose the Shuttle DS20U3?

The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is an excellent choice for professionals seeking a small, reliable, and efficient computing solution. Whether for use in digital signage, kiosks, thin client systems, or office PCs, the DS20U3 offers performance, flexibility, and silent operation in a compact design.

Conclusion

In conclusion, the Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC combines reliable performance, a fanless design, and versatile connectivity in a small form factor. Perfect for a variety of professional environments, this mini PC provides an ideal solution for applications that require low power consumption, quiet operation, and efficient performance.
