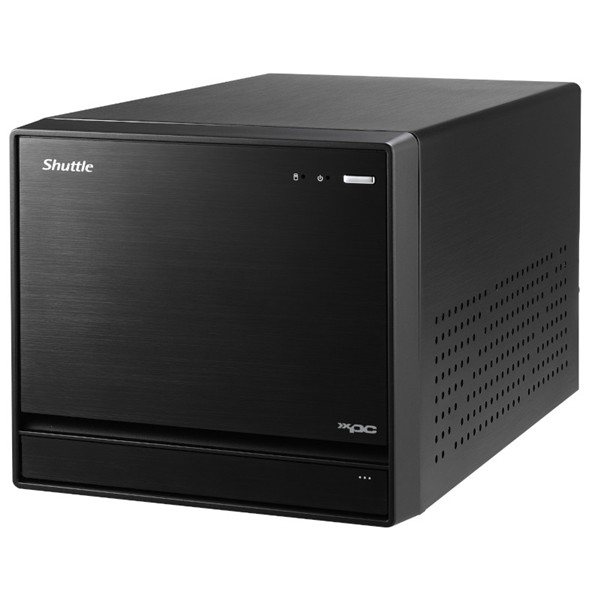

Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation

Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation

Intel W580 express chipset, LGA1200 Socket, 4x DDR4 DIMM (128GB Max), 2x DP, 1x HDMI, Quad Ethernet, 8x USB, 1x PCIeX16 Expansion (4.0), 1x PCIeX4 Expansion (3.0), 4x 3.5" HDD Capacity, 2x M.2 2280 M-Key, 1x M.2 2230 E-key. Supports ECC RAM

Specifications

Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation

The Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation is a compact and powerful computing solution designed for professionals seeking high performance in a small form factor. Powered by the Intel® W580 chipset, this mini PC supports 10th and 11th generation Intel® Core™ processors and Xeon® W-series CPUs, offering robust performance for demanding applications.

Key Features

• Processor Support: Compatible with Intel® 10th and 11th generation Core™ processors (i9, i7, i5, i3), Pentium®, Celeron®, and Intel® Xeon® W series processors with a maximum TDP of 125W.

• Memory: Supports up to 128GB of DDR4-3200MHz memory across four DIMM slots, providing ample capacity for multitasking and memory-intensive applications.

• Graphics: Integrated Intel® UHD Graphics, capable of supporting triple independent 4K displays via HDMI 2.0b and DisplayPort 1.4 outputs.

• Expansion Slots: Features a PCIe x16 v4.0 slot for dual-slot graphics cards (up to 280mm in length) and a PCIe x4 v3.0 slot for additional expansion cards.

• Storage: Offers multiple storage options, including four 3.5" SATA bays, one M.2-2280 PCIe Gen4 x4 NVMe SSD slot, and one M.2-2230 slot for optional WLAN modules.

• Connectivity: Equipped with four Ethernet ports (two 2.5G and two 1G), eight USB ports (four USB 3.2 Gen 2, one USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 1), and audio in/out jacks, providing versatile connectivity options for various peripherals and networks.

• Design: Housed in a compact aluminum chassis measuring 332 x 215 x 190 mm and weighing 3.5 kg, the SW580R8 is designed for space-constrained environments.

• Cooling: Utilizes Shuttle's exclusive I.C.E. 2 heat pipe technology for efficient cooling, ensuring stable long-term operation.

• Power Supply: Includes a 500W 80 PLUS Gold certified internal power supply, providing reliable power for the system.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating system choice.


Benefits

• Compact Design: With a volume of just 13.6 liters, the SW580R8 offers a small footprint without compromising on performance.

• High Performance: The combination of a powerful processor, ample memory, and integrated graphics ensures smooth operation for demanding applications.

• Versatile Connectivity: Multiple USB ports, dual 2.5G Ethernet, and support for triple 4K displays provide extensive connectivity options for various peripherals and networks.

• Flexible Storage Options: Multiple storage bays and M.2 slots allow for customization based on storage needs.

• Efficient Cooling: The I.C.E. 2 heat pipe technology ensures efficient cooling, maintaining optimal performance even under load.


Why Choose the Shuttle SW580R8?

The Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation is an excellent choice for professionals seeking a compact, high-performance computing solution. Its powerful processor support, ample memory capacity, and versatile connectivity options make it ideal for applications such as digital signage, video conferencing, and office environments where space is limited but performance is essential.

Conclusion

In conclusion, the Shuttle SW580R8 LGA1200 4Gbe 8USB Triple-display Barebones Workstation offers a compelling combination of performance, compact design, and versatility. Whether you're looking to enhance your digital signage setup, deploy a silent office workstation, or create a powerful home theater PC, the SW580R8 provides the performance and flexibility needed to meet your requirements.
