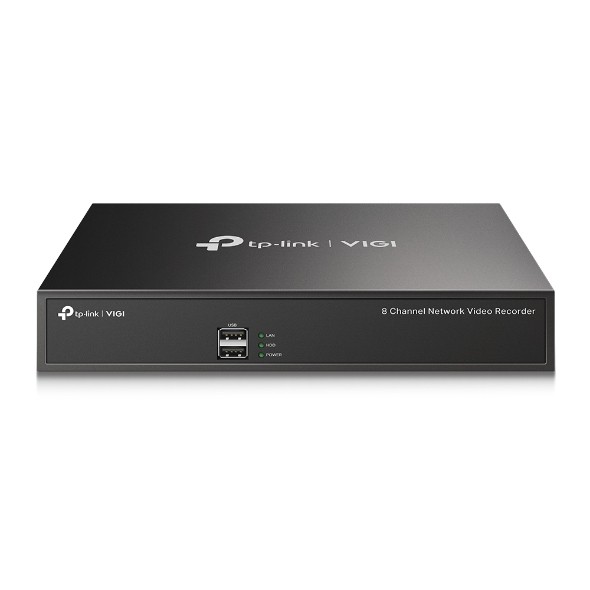

TP-Link NVR1008H 8 Channel Recorder (no HDD)

TP-Link VIGI NVR1008H 8-Channel Network Video Recorder (No HDD)

1. Description

The TP-Link VIGI NVR1008H is an advanced 8-channel Network Video Recorder (NVR) designed for professional surveillance systems. It offers high-definition video recording, real-time playback, and seamless integration with VIGI IP cameras. This model does not include a hard disk drive (HDD), allowing you to select a storage solution that best fits your needs.

Key Features:

• 8-Channel Live View: Supports up to 8 IP cameras simultaneously, providing comprehensive coverage for your premises.

• 4K HDMI Video Output: Offers high-resolution video output for clear and detailed monitoring.

• H.265+ Compression: Utilizes advanced compression technology to reduce bandwidth and storage requirements without compromising video quality.

• ONVIF Compatibility: Ensures broad compatibility with a wide range of third-party IP cameras.

• Remote Monitoring: Access live and recorded footage remotely via the VIGI app, web interface, or VIGI Security Manager.

• Two-Way Audio: Supports audio input and output for two-way communication with connected cameras.

• SATA Interface: Equipped with one SATA interface supporting up to 10TB of storage (HDD not included).

• USB Ports: Includes two USB 2.0 ports for mouse, keyboard, or mobile hard disk connection.

• Power Supply: Powered by a 12V/1.5A DC adapter.


Note: A hard disk drive (not included) must be installed for operation. Manuals+

2. Specifications

• Video Input: 8-channel IP video input.

• Video Output: 1-channel HDMI and VGA simultaneous output.

• Decoding Capability: Supports up to 8 channels at 2MP resolution or 4 channels at 4MP resolution.

• Bandwidth: Incoming bandwidth of 80 Mbps and outgoing bandwidth of 60 Mbps.

• Storage: 1 SATA interface supporting up to 10TB HDD.

• Audio Compression: G.711A/G.711U/G.726.

• Power Consumption: 4.25W (without HDD).

• Operating Temperature: 0°C to 40°C.

• Operating Humidity: 10% to 90% RH.

• Dimensions: 260 mm (W) × 220 mm (D) × 45 mm (H).

• Weight: Approximately 1.2 kg.


3. Benefits

• Scalability: Easily expand your surveillance system by adding up to 8 IP cameras.

• High-Quality Video: Capture detailed footage with 4K HDMI output and H.265+ compression.

• Flexible Storage Options: Choose a compatible HDD that meets your storage requirements.

• Remote Access: Monitor your premises from anywhere using the VIGI app or web interface.

• Two-Way Communication: Communicate with individuals through connected cameras using the two-way audio feature.


4. Why Choose the VIGI NVR1008H (NZ-Focused)

• Local Support: TP-Link offers customer support in New Zealand, ensuring assistance is readily available.

• Compatibility: The NVR is compatible with a wide range of VIGI and third-party IP cameras, providing flexibility in camera selection.

• Customizable Storage: Select an HDD that fits your storage needs and budget, allowing for cost-effective solutions.

• Reliable Performance: Designed for continuous 24/7 operation, ensuring consistent surveillance coverage.


5. Conclusion

The TP-Link VIGI NVR1008H 8-Channel Network Video Recorder (No HDD) is a robust and flexible solution for building or expanding your surveillance system. With its high-definition video output, extensive camera support, and remote monitoring capabilities, it provides comprehensive security for your premises. The option to choose your own storage solution adds an extra layer of customization to meet your specific needs.

TP-Link NVR1008H 8 Channel Recorder (no HDD)

Supports up to 10TB SATA HDD Remote monitoring via VIGI app 8 channel recording, 4 channel simultaneous playback Onvif compliant for broad camera support Interface 1x 10/100 Ethernet RJ45, 2x USB 2.0 2-way audio
