UN2F USB 3.0 To Dual SATA Adapter Docking Station, Suitable For Version 2.5 Or Higher

Description:

The item is a USB 3.0 to Dual SATA Adapter Docking Station for 2.5 or 3.5in HDD SSD.
It can connect any 2.5"/3.5" Serial ATA (SATA) or SATA II Hard Drive to your computer through an available USB 3.0 port on your desktop or laptop.

Features:
1. Hard Drive Duplicator Function
2. LED light indicates Power and Activity status.
3. Support hot plug, plug and play.
4. No need extra power adapter and any drivers .
5. High quality PCB, with precision, long-term storage of the effective protection of data.
6.Transfer Rates Up to 5 Gbps w/USB 3.0
7. Transfer Rates Up to 480 Mbps w/USB 2.0
8. The maximum capacity compatibility with 6TB.

Hard Drive Duplicator Function Operation:
1. Plug in Both hard drives and identify Source Disk and Target Disk
HDD1=Source Disk; HDD2=Target Disk
2. Connect power supply and switch on power.  (make sure that the usb cable is disconnected)
3. Press "Copy" button for about 10 seconds until the LED will start flashing and the cloning process will begin.

Detailed Main function:
1. Reading disk function:
It can  search two hard disk at the same time, the maximum capacity compatibility with 6TB.
2. Offline cloning function:
Unplug the USB cable and connect DC12V power supply, then hold down the LED button on the plate clone (does not let go about 10sec), turn on the power switch, the 4 blue LED lights will flash flow that indicate clone started. Cloning is cloned from HDD1 to HDD2.  25%process completed, the 25%LED long light, 100%process completed, 100%LED long light.

Specification:
1. Color: As picture
2. Material: ABS panel + Aluminium alloy Body
3. Compatible with USB 1.1 & USB 2.0.
4. Compatible Windows: 2000/XP/Vista/7/8 (Both 32-bit and 64-bit versions) MAC OS X
5. Power supply interface: DC5.5*2.5 standard interface
6. Power input: 100~240V 50/60Hz 1.8A
7. Power output: 12V 4A
8. USB3.0 cable length: 104cm
9. Power supply cable: Approx. 90 cm ( DC5.5 plug side )
10. Power supply cable: Approx. 120 cm ( Wall plug side )
11. Item size: Approx. 136*120*72 mm
12. Net weight: Approx. 400 g
13. Package size: 230*160*80mm
14. Package weight: Approx. 870 g

Note: the price is more than 50$, not responsible for any after-sales, mind not to shoot.

Packing list:

USB 3.0 to dual SATA adapter docking station*1
USB3.0 cable*1

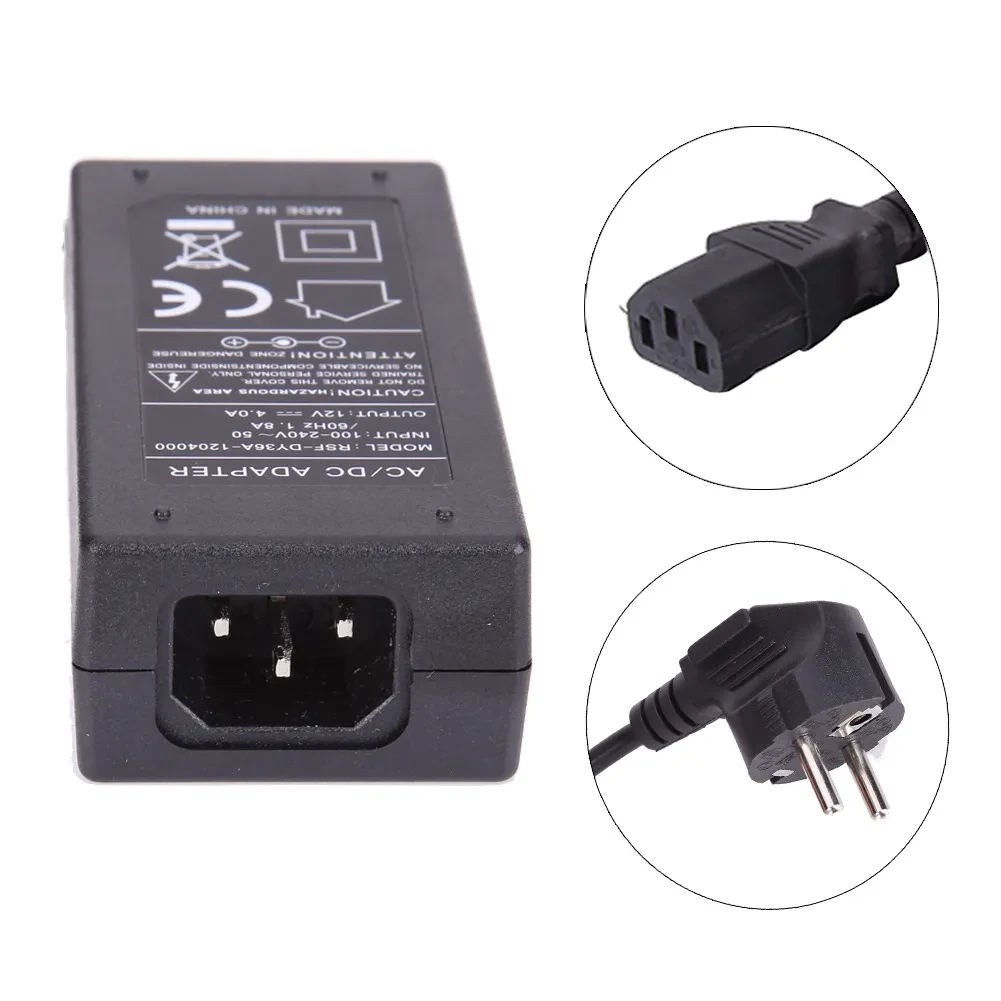

Power adapter*1
Power cable (EU standard)*1

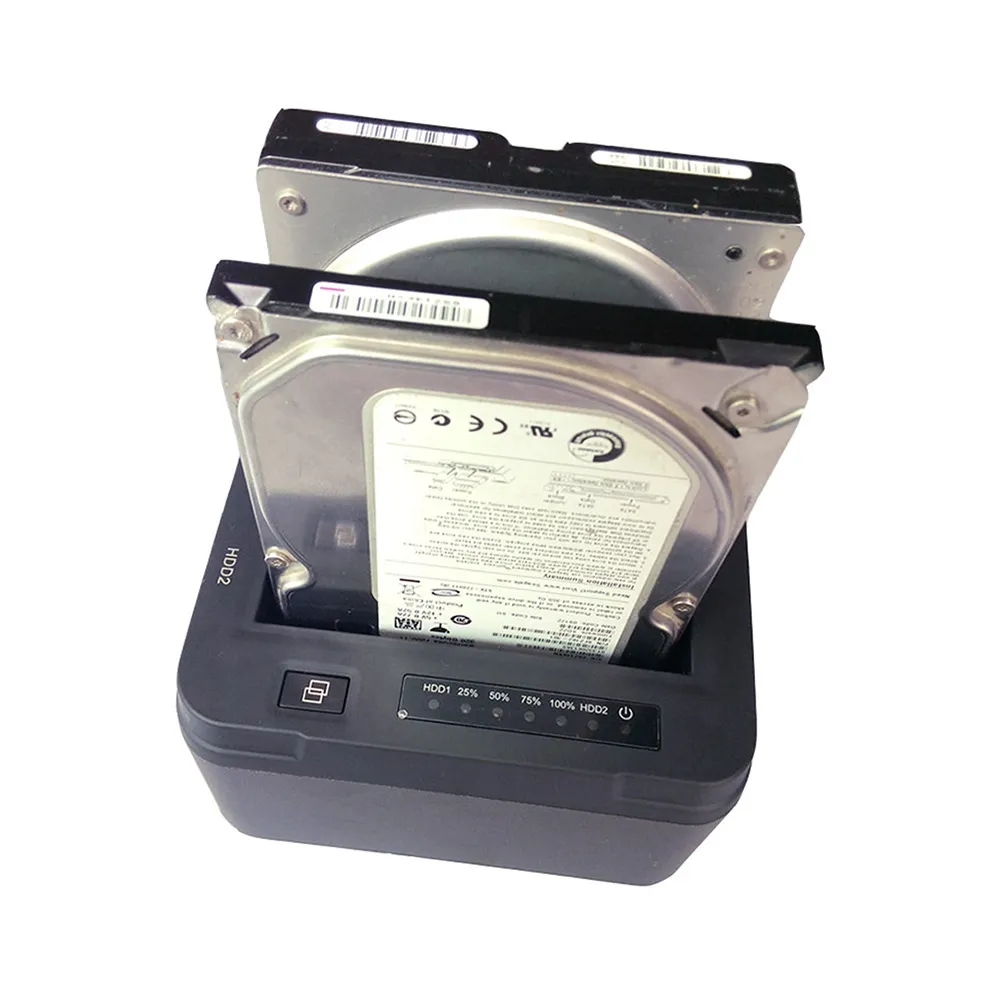

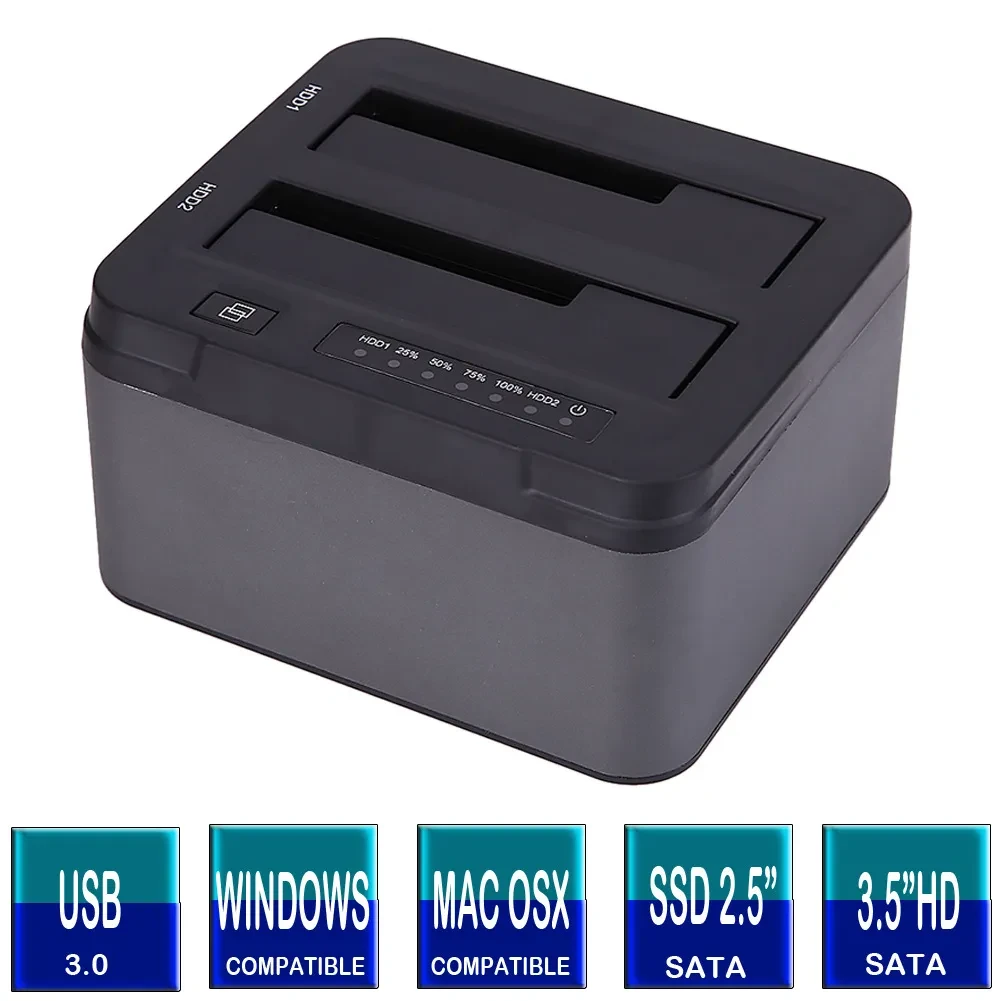

Product Image:

Product Name
USB 3.0 to Dual SATA Adapter Docking Station

Perfect For
• Users who need to connect one or two 2.5″ / 3.5″ SATA hard drives or SSDs to a computer via USB for data transfer, backups or cloning.
• Home computing enthusiasts in New Zealand who upgrade or service storage drives and want a quick dock solution rather than internal install.
• People working with laptops or desktops that lack spare SATA ports but have free USB 3.0 ports and need access to SATA drives.
• IT professionals or tech‑savvy users who carry out data recovery, drive migration or reuse old drives using a simple plug‑and‑play docking station.

Description
The USB 3.0 to Dual SATA Adapter Docking Station offers a flexible, high‑speed solution for accessing and managing SATA drives externally. Simply plug the dock into a USB 3.0 port on your PC, laptop or workstation and insert one or two 2.5″ or 3.5″ SATA drives. With the dual‑bay design, you can operate two drives simultaneously—ideal for cloning, backing up and swapping drives. The USB interface supports SuperSpeed transfer rates (up to 5 Gbps) and provides universal compatibility across Windows, macOS and Linux. It’s a compact, convenient solution that lets you treat internal drives as external storage without enclosure hassles.

Given its support for both portable 2.5″ SSD/HDD and the bulkier 3.5″ desktop drives, the docking station brings great versatility. Whether you’re upgrading a desktop’s storage, migrating data to a new drive, recovering data or just accessing an old drive, this device simplifies the process—and suits the mix of PC setups commonly found in New Zealand homes and small offices.

Key Points

• Dual‑SATA bay design: Supports two SATA drives (2.5″ or 3.5″) simultaneously, allowing for parallel access or cloning tasks.

• USB 3.0 host interface: Offers high transfer speeds (up to 5 Gbps under optimal conditions) and backwards compatibility with USB 2.0 ports (at reduced speeds).

• Plug‑and‑play: Minimal setup required—just connect power (if required), insert drives and connect to your computer. No special drivers needed for most systems.

• Wide drive compatibility: Works with SATA I/II/III 3.5″/2.5″ HDDs and SSDs—ideal for reuse of existing gear or drive upgrades.

• Data‑management friendly: Makes drive cloning, backup, swapping and testing easier without needing to open your computer case.


Benefits

• Effortless access to internal hard drives: Instead of installing drives inside a PC, you can access them externally for convenience, especially for repurposing old drives or quick data retrieval.

• Cost‑effective upgrade tool: Avoid buying separate external enclosures for each drive type; this dock handles both sizes and two drives at once.

• Improved workflow for tech tasks: Whether you’re migrating data, restoring backups or testing drives, the dual‑bay design streamlines operations and saves time.

• Space‑efficient and convenient setup for NZ homes: Its compact form factor fits well on desks or small workspaces typical in Kiwi households or home offices.

• Flexibility for future storage changes: If you upgrade your storage or change drives often, this dock lets you reuse drives easily and keeps your storage environment adaptable.


Why Choose This Adapter?
If you’re looking for an easy, reliable way to access or manage SATA drives without opening your computer or investing in multiple external enclosures, this docking station is an excellent choice. Its dual‑bay capability stands out—many single‑bay solutions require you to swap drives when you have multiple units to access. The USB 3.0 interface ensures that you’re not severely bandwidth‑limited (especially for large file transfers or SSDs). For New Zealand users who maintain PCs, handle backups, or need a single tool for multiple drives, this adapter offers utility, flexibility and value.

Conclusion
The USB 3.0 to Dual SATA Adapter Docking Station is a smart investment for anyone needing frequent access to SATA drives, whether you’re a home user, IT enthusiast or small business. With its dual‑bay design, wide compatibility, and convenient USB interface, it simplifies many storage‑related tasks—from data migration to drive reuse. If you want a straightforward, efficient way to manage multiple SATA drives externally, this docking station certainly delivers.
