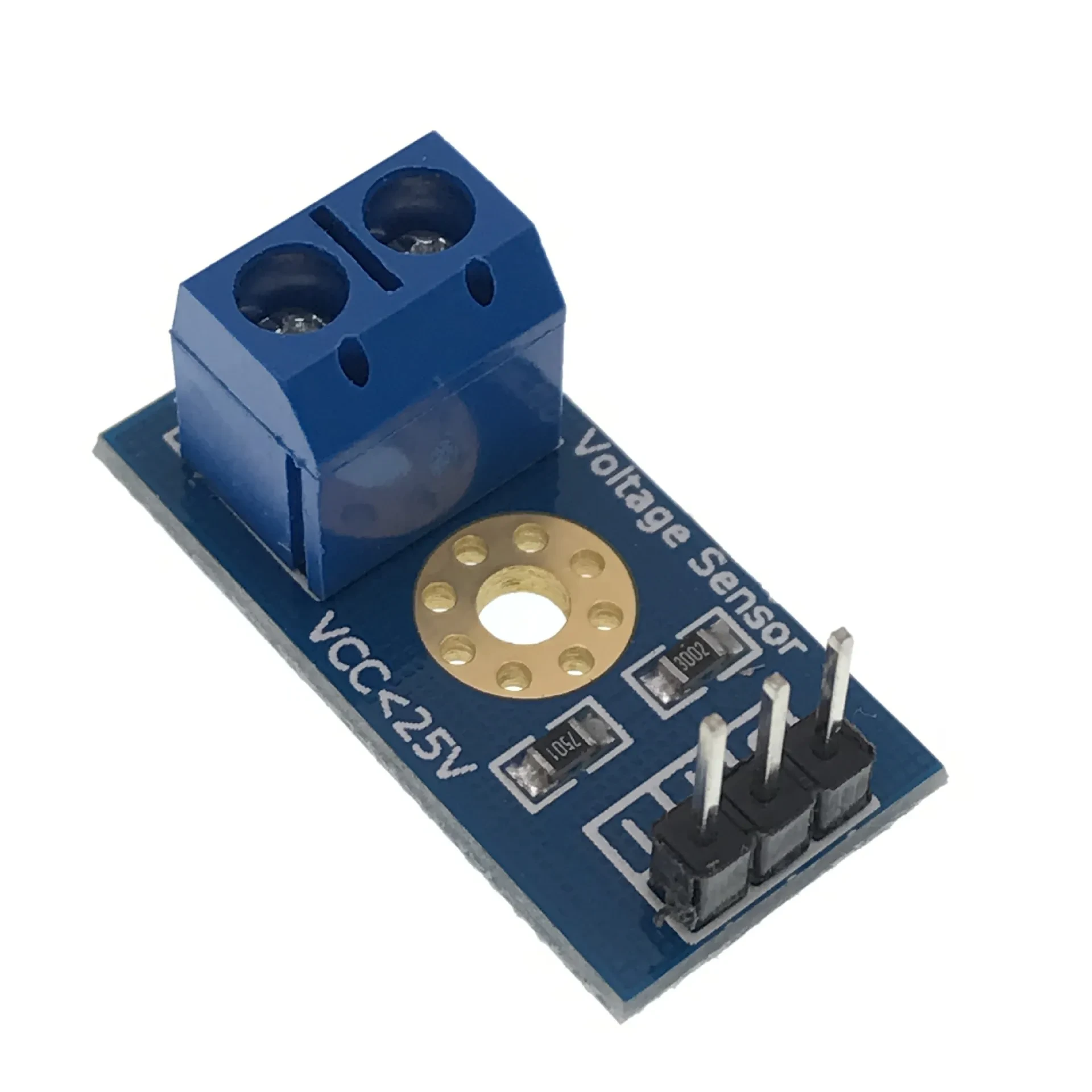

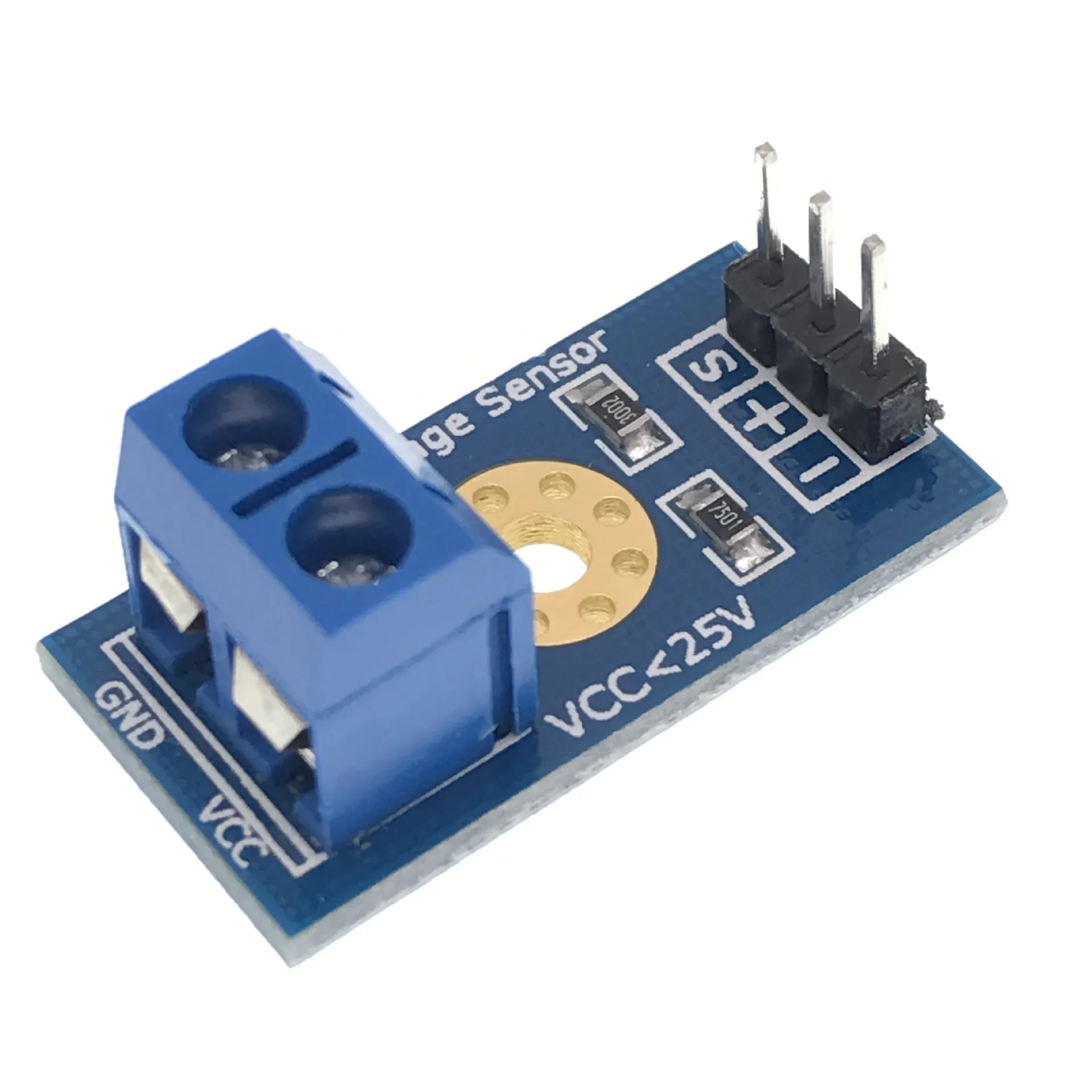

Voltage Detection Module Sensor Electronic Bricks

Product information:
This module is designed based on the resistance voltage division principle, which can reduce the input voltage of the terminal interface by 5 times, and the voltage of Arduino analog input is 5V, then the input voltage of the voltage detection module cannot be greater than 5V × 5=25V (if 3.3V system is used, the input voltage cannot be greater than 3.3 vx5 = 16.5V). The analog resolution of this module is 0.00489V(5V/1023) because the AVR chip used in Arduino is 10-bit AD, therefore, the voltage detection module detects that the input small voltage is 0.00489V × 5=0.02445V.

Parameters:
Voltage input range: DC0-25V
Voltage detection range: DC0.02445V-25V
Voltage analog resolution: 0.00489V
DC input interface: the positive terminal is connected to VCC, and the negative terminal is connected to GND
Output interface: "" connected to 5/3.3V, "-" connected to GND,"s" connected to Arduino AD pin

Voltage Detection Module Sensor Electronic Bricks – Reliable Monitoring for Your Electronics

Perfect for DIY Enthusiasts and Electronics Projects

The Voltage Detection Module Sensor Electronic Bricks is an essential tool for anyone working on electronics projects or building DIY circuits. Designed for accurate and efficient voltage monitoring, this module allows you to easily detect and measure voltage levels within your circuit. Whether you're designing a new electronic device or troubleshooting an existing system, this sensor module provides real-time feedback on voltage variations, ensuring the safety and stability of your projects.

Precise Voltage Detection for Enhanced Performance

The Voltage Detection Module Sensor Electronic Bricks is built with high-precision components to provide accurate voltage readings. This module can detect a wide range of voltages, making it suitable for various applications, including Arduino-based projects, home automation systems, robotics, and more. The module’s compact design ensures it fits easily into most circuits, while its straightforward integration makes it an ideal choice for both beginners and experienced electronics enthusiasts.

Key Features

• Accurate Voltage Detection: Provides precise voltage readings to ensure your electronics work within safe parameters.

• Wide Voltage Range: Suitable for a variety of voltages, making it versatile for different electronic applications.

• Easy Integration: Simple to connect to microcontrollers, such as Arduino, Raspberry Pi, or other development boards.

• Compact and Durable: Designed to fit into tight spaces within your projects while providing reliable performance over time.

• Visual Indicators: Equipped with LEDs or display options to provide immediate feedback on voltage levels, making monitoring easy.


Why Choose the Voltage Detection Module Sensor Electronic Bricks

The Voltage Detection Module Sensor Electronic Bricks is the ideal solution for anyone needing precise voltage monitoring in their electronics projects. Its versatility, accuracy, and ease of use make it perfect for various applications, from hobbyist circuits to more advanced projects. The reliable feedback ensures that you can maintain safe operating conditions in your devices, preventing damage and ensuring the longevity of your components.

Conclusion

For anyone working with electronics, the Voltage Detection Module Sensor Electronic Bricks is an indispensable tool. Its accurate voltage monitoring, wide compatibility, and simple integration make it a must-have for DIY projects, circuit testing, and voltage management in electronic systems. Ensure the safety and efficiency of your electronic creations with this reliable sensor module.
