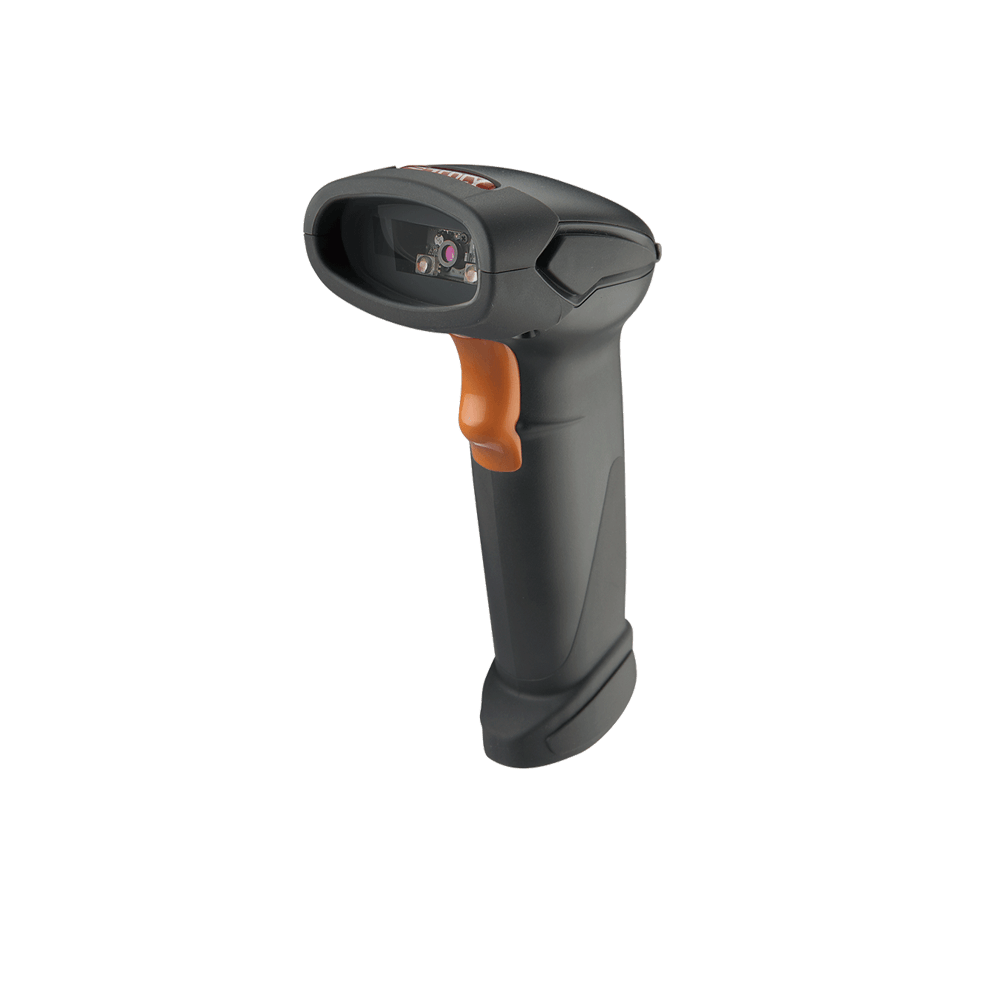

Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D with Cradle

The Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D with Cradle is a high-performance barcode scanner designed for businesses that require efficient, wireless barcode scanning. With Bluetooth connectivity, rugged design, and compatibility with both 1D and 2D barcodes, this scanner is ideal for applications in retail, logistics, and warehouse environments.

Key Features

Wireless Bluetooth Connectivity

The Zebex Z-3192BT offers Bluetooth connectivity, enabling wireless operation within a range of up to 100 meters. This flexibility allows users to move freely within large areas, improving efficiency and reducing the need for cables.

Advanced 1D & 2D Barcode Scanning

The Zebex Z-3192BT can decode a wide range of 1D and 2D barcodes, including QR codes, DataMatrix, and PDF417. Whether you're scanning product barcodes, loyalty cards, or mobile coupons, this scanner delivers quick and reliable performance.

Durable and Rugged Design

Built to withstand tough environments, the Zebex Z-3192BT is designed with IP43-rated environmental sealing and is resistant to drops from up to 1.2 meters. This makes it an excellent choice for use in busy, demanding environments such as warehouses, factories, and retail settings.

Ergonomic and Lightweight

The Zebex Z-3192BT features an ergonomic, lightweight design (weighing only 210g) that ensures comfortable use during long scanning sessions. Its gun-shaped handle allows for easy, natural handling, reducing user fatigue.

Long Battery Life

The scanner is equipped with a 3.7V, 2,500 mAh Li-ion rechargeable battery that provides over 20,000 scans per charge. With up to 7 hours of continuous use, this long battery life reduces the need for frequent recharging, making it perfect for extended shifts.

Cradle for Charging and Communication

The included cradle serves as both a charging station and a communication interface. It supports Bluetooth communication, ensuring seamless syncing between the scanner and your systems. The cradle also helps keep your scanner organized and charged when not in use.

Specifications

• Light Source: 650 nm visible laser diode

• Illumination: 625±5 nm LED

• Sensor: 752H×480V pixels (wide VGA)

• Depth of Field:

  • 4 mil: 50 – 90 mm

  • 5 mil: 50 – 120 mm

  • 7.5 mil: 30 – 210 mm

  • 10 mil: 30 – 240 mm

  • 13 mil: 30 – 330 mm

  • 20 mil: 40 – 330 mm

• Scan Rate: 330 scans per second

• Field of View: 39.6° horizontal; 25.7° vertical

• Interface: USB HID, USB Virtual COM, RS-232, OPOS, JPOS

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Drop Durability: Designed to withstand 1.2M drops

• Weight: 210g (including battery)

• Battery: 3.7V, 2,500 mAh Li-ion rechargeable

• Battery Life: 7 hours per full charge (over 20,000 scans at 1 scan per second)


Benefits

Wireless Freedom

The Zebex Z-3192BT allows users to move freely around large spaces, improving workflow efficiency. With a 100-meter wireless range, it provides the flexibility needed in large retail stores, warehouses, and logistics centers.

Durability for Tough Environments

Designed with an IP43-rated rugged housing, the scanner is resistant to water and dust, ensuring it can perform reliably in demanding conditions. Its 1.2-meter drop resistance ensures long-term durability, reducing the need for frequent replacements.

Easy Integration and Setup

The Zebex Z-3192BT is easy to integrate with existing systems thanks to its multi-interface compatibility (USB, RS-232, OPOS, JPOS). The plug-and-play functionality ensures quick setup with no complicated installation required.

Long Battery Life

With a 2,500 mAh Li-ion battery, the Zebex Z-3192BT can last up to 7 hours on a full charge. This extended battery life is ideal for businesses that operate in environments with long shifts or those requiring a lot of scanning during the day.

Ideal Applications

• Retail: Streamline checkout processes, product scanning, and inventory management.

• Warehousing: Improve stocktaking and inventory control.

• Logistics: Efficiently track shipments and deliveries.

• Healthcare: Ensure accurate medication and patient tracking.

• Manufacturing: Enhance product tracking and order fulfillment.


Why Choose the Zebex Z-3192BT?

The Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D with Cradle is a comprehensive solution for businesses that require reliable and efficient barcode scanning. Its wireless functionality, rugged design, and long battery life make it a perfect choice for businesses in industries like retail, logistics, and healthcare.

With its ability to decode both 1D and 2D barcodes, long-range Bluetooth connectivity, and user-friendly design, this scanner enhances operational efficiency while providing a flexible and durable solution for various applications.

Conclusion

The Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D with Cradle is an excellent tool for businesses looking to optimize their barcode scanning operations. Its wireless capabilities, robust construction, and ergonomic design make it the perfect choice for any business that needs flexibility and reliability in their barcode scanning solution.

Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D w/ Cradle

Wireless with Cradle/Dock (up to 100m range). Zebex Ultrascan Decoding Technology, 2 Year Warranty. High performance from a renowned manufacturer. Connection to PC via USB-C (cable incl.) for power, and separate USB for data. Supports standard barcodes, 2D barcodes, QR Codes, and more See RA2245 for the same scanner, but without the cradle.
